Manufacturer: Sammode

SABATIER Xtrem 19910816

  • 19910816
  • Diameter
  • Power supply
  • Luminous Flux

  • Cable gland
  • ATEX

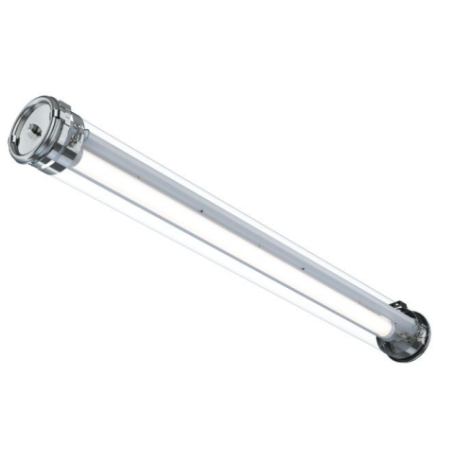

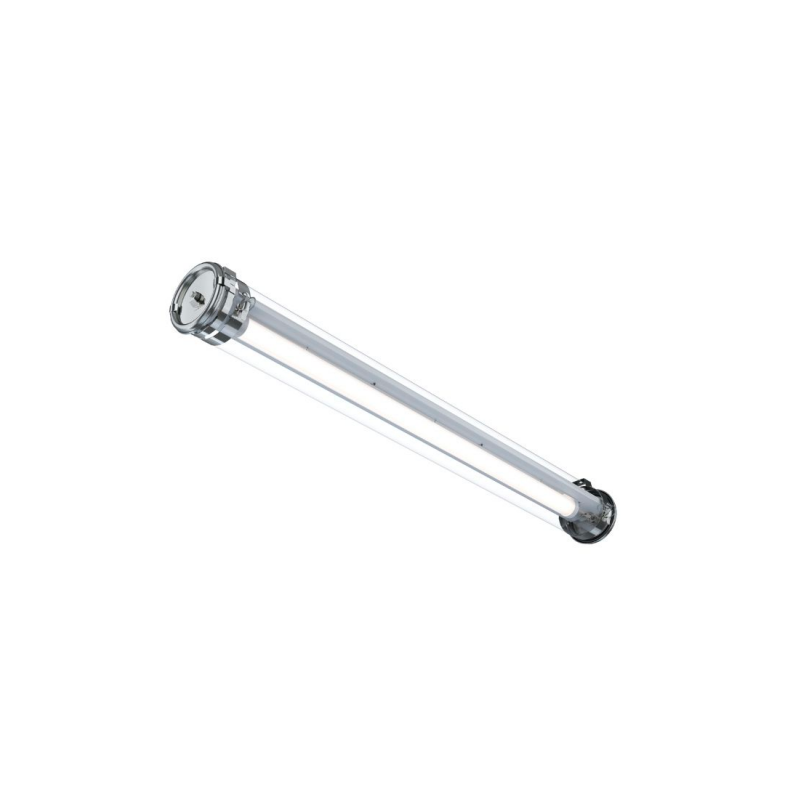

Borosilicate glass tube ø133 for extreme or highly corrosive ATEX zone 1 atmospheres

Installing safe lighting in an explosive atmosphere is a non-negotiable requirement. Sammode designed the SABATIER luminaire with T5 Gas certification, designed for intensive use at temperatures up to 50°C. This model can withstand vibration and chemical attack thanks to its 5mm thick borosilicate glass. The SABATIER luminaire is equipped with a cable gland and a cable with an ATEX plug. A wide range of power supply options are available, ensuring durable lighting for any zone, regardless of its extreme conditions.

Options

Cable input
Connector type Cable diameter range Code
1 gland Ø8–13 mm (polyamide) 113
Ø10–15 mm (polyamide) 116
Ø6–14 mm (nickel-plated brass) 113LN
2 glands (including one plugged) Ø8–13 mm (polyamide) 213
Ø10–15 mm (polyamide) 216
Ø6–14 mm (nickel-plated brass) 213LN
Mounting Brackets
Bracket Type Code
Reinforced Mounting Brackets BRS
Reinforced Brackets with Screw HSHC BRV
Color temperature
Color temperature Code
4000K 840
Materials
Element Code
Polycarbonate housing PO
Co-extruded PC/PMMA housing with high chemical resistance POME
304L Stainless Steel End Caps and Clamps -
316L Stainless Steel End Caps and Clamps MR

Specifications

Technical Characteristics
Category Description
Light Source Efficient, replaceable LED module (CRI>80, 3 SDCM), 50,000 h L80/B10 at maximum operating temperature
Optics Special diffused optics with a satin finish
Heat management system Aluminum heatsink
Driver Highly reliable, mechanically reinforced DC driver thermally. Compatible with TN, TT and IT systems. Central Power Supply Compatibility
Power Supply Voltage 198–264V / 50/60Hz
Electrical Class Class I – Welded pin to input terminal and cover for potential equalization connections
Temperature Range work –20°C to +50°C
Easy installation and maintenance
Connection ATEX cable gland made of polyamide for cables Ø8–13 mm
• 1 cable: 3 x 2.5 mm² terminal block
• 2 cables: 5 x 2.5 mm² terminal block
Mounting Mounting with 2 stainless steel screws, adjustable spacing and 360° rotation
LED module maintenance Easily replaceable LED modules and power supply. Voltage-free maintenance possible in an explosive atmosphere.
Materials
Housing Borosilicate glass
Caps and Mounting Brackets 304L Stainless Steel
Seals Peroxide-cured EPDM
Construction One-piece housing with high mechanical and chemical resistance, tightness thanks to screw-type closing
Norms
ATEX / IECEx IEC 60079-0, IEC 60079-7, IEC 60079-18, IEC 60079-31
Design II 2G Ex eb mb IIC T5 Gb – II 2D Ex tb IIIC T80°C Db IP66
Temperature class T5 (Gas)
Ingress Protection IP66, IP68, IP69K
Impact Resistance (IK) IK07
Fire Resistance Non-Flammable
Vibration resistance Compliant with EN 60598-1 (tested according to IEC 60068-2-6)
