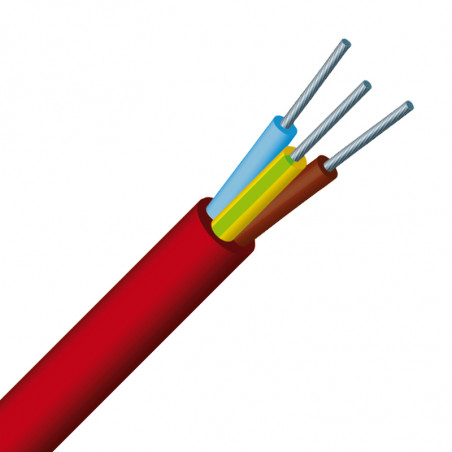

SILICABLE® MC-ECS -60 °C to +180 °C
  • SILICABLE® MC-ECS -60 °C to +180 °C
  • SILICABLE® MC-ECS -60 °C to +180 °C

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: OMERIN

SILICABLE® MC-ECS -60 °C to +180 °C

Characteristics
  • Continuous operating temperatures: -60 °C to +180 °C
  • Good resistance to thermal shock and UV.
  • Rated voltage: up to 600/1000 V.
  • Test voltage: up to 3000 V.

Standard products

  • Standard conductor colours: see table below.
  • Standard outer sheath colour: brick red.

Approvals - standards

  • Halogen-free: IEC 60754-1 / EN 60754-1.
  • Low corrosivity of gas emissions: IEC 60754-2 / EN 60754-2.
  • Fire retardant: NF C 32-070 test C1.
  • Resistance to vertical flame propagation for an insulated cable: IEC 60332-1-2 / EN 60332-1-2 / NF C 32-070 test C2.
  • Tests on electric cables under fire conditions Circuit integrity: IEC 60331-21.

Applications

  • Cabling in hot atmospheres up to 180 °C.
  • Cabling in the metallurgical industry, glassworks, etc.
  • Cabling for furnaces, ovens, machines for thermoplastics and rubber, welding stations, etc.
  • Lights, spotlights, etc.

Options

  • Bare copper core: ref. MC-CS.
  • Nickel-plated copper core: ref. MC-CNCS.
  • Silver-plated copper core: ref. MC-ACS.
  • Pure nickel core (not described in IEC 60228): ref. MC-NCS.
  • Outer electrical shielding: > Tin-plated copper braid: ref. BEMC-ECS.
  • Outer flexible armour: > Galvanised steel braid: ref. BGMC-ECS. > Stainless steel braid: ref. BIMC-ECS.
  • Other nominal cross-sections: contact us.
  • Other nominal stranding: contact us.
  • Other colours: contact us.
  • Other options and/or combinations of the options outlined above: contact us.
SILICABLE MC-ECS -60°C do +180°C kable na wysoką temperature

1 • Flexible tin-plated copper core - class 5 as per IEC 60228.
2 • I
