Manufacturer: FEUERHERDT

EMC sliding overlays

Slippy Fingers

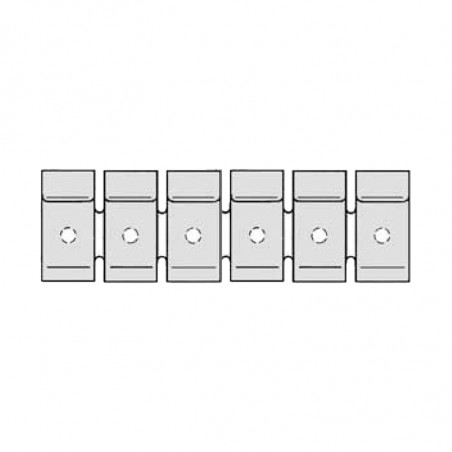

Curved and slippy fingers can be used to shield housings, enclosures and panels very effectively against interference. They are optimal to use when space is short. Assembly is extremely simple as the rear side of the strip is provided with two-sided adhesive strip.
Extensive soldering, riveting or bolting is therefore not necessary. The measured attenuation values are excellent.
Magnetic field: at 14 KHz more than 46 dB. Plane waves: at 10 GHz approx. 108 dB.
Slippy fingers are a further development of the curved fingers, whereby the free part of the finger is retained within a channel and is therefore protected against damage. As compression increases, the fingers will slide further into the channel.


Nakładki ślizgowe EMC

Form (Form (Kształt)) a
[mm]
b
[mm]
Ø
[mm]
L
[mm]
P/N
V 19  4.32  0.46  1.5  406 9030*
        7620 9031*
V 20  4.32  0.46  1.5  406 9032*
        7620 9033*
V 21  5.79  0.56  1.5  406 9034*
        7620 9035*
V 22  8.71  0.81  1.5  608 9036*
        7620 9037*
* only available in CuBe

Uziemiające i ekranujące paski EMC

Nakładki ślizgowe EMC - W1, W2, W3, W4, W5
Form (Kształt) a
[mm]
b
[mm]
C
[mm]
H
[mm]
B
[mm]
S
[mm]
L
[mm]
P/N
W1 4.3 0.5 5.3 2.8 8.8 0.05 408 9040
W2 5.7 0.6 5.3 3.3 9.4 0.05 409 9041
W3 8.7 0.8 7.2 5.7 15.2 0.08/0.05 608 9042
W4 8.7 0.1 11.2 8.1 19.8 0.10 455 9043
W5 11.7 1.0 19.8 10.4 27.9 0.10 455 9044



Nakładki ślizgowe EMC W6, W7, W8, W9, W10
Nakładki ślizgowe EMC W6, W7, W8, W9, W10
Form (Kształt) a
[mm]
b
[mm]
C
[mm]
H
[mm]
B
[mm]
S
[mm]
L
[mm]
P/N
W6 4.3 0.5 5.4 2.5 8.1 0.09 408 9045*
W7 5.7 0.6 5.25 3.3 9.4 0.09 406 9046*
W8 3.9 0.8 7.4 5.6 15.2 0.09 455 9047*
W9 8.7 0.8 7.4 5.6 15.2 0.09 456 9048*
W10 5.7 0.6 5.45 5.15 8.4 0.05 409 9049
* only available in CuBe



Nakładki ślizgowe EMC W12
Form (Kształt) a
[mm]
b
[mm]
C
[mm]
H
[mm]
B
[mm]
S
[mm]
L
[mm]
P/N
W12 8.72 0.8 19.8 5.6 15.2 0.09 456 9051
All contact strips are provided with two-sided adhesive strip.



Nakładki ślizgowe EMC J1, J2, J3
Form (Kształt) a
[mm]
b
[mm]
C
[mm]
H
[mm]
B
[mm]
S
[mm]
L
[mm]
P/N
J1 3.56 1.22 16.0 5.8 19.6 0.13 407 9060*
J2 3.56 1.22 16.0 2.3 22.6 0.13 407 9061*
J3 3.56 1.22 16.0 3.3 22.6 0.13 407 9062*
* only available in CuBe



Nakładki ślizgowe EMC J4, J5, J6
Form (Kształt) a
[mm]
b
[mm]
C
[mm]
H
[mm]
B
[mm]
S
[mm]
L
[mm]
P/N
J4  3.56  1.22  16.0  2.3  23.4  0.13  406 9063*
J5  3.56  1.22  16.0  2.3  23.4  0.13  406 9064*
J6  3.56  1.22  16.0  2.3  23.4  0.13  406 9065*
* only available in CuBe



Nakładki ślizgowe EMC Z
Form (Kształt) a
[mm]
b
[mm]
C
[mm]
B
[mm]
S
[mm]
L
[mm]
P/N
1.65  0.76  4.1  9.1  0.13  407 9070
L also to custumer specifications


Slot-Mount Shields in Strips or Short Lengths


Nakładki ślizgowe EMC GK1, GK2
Form (Kształt) a
[mm]
b
[mm]
S
[mm]
P/N
GK 1  4.3  0.5  0.05  9701
GK 2  4.3  0.5  0.09  9702



Nakładki ślizgowe EMC GK5, GK6
Form (Kształt) a
[mm]
b
[mm]
S
[mm]
P/N
GK 5 4.3 0.5 0.05 9705
GK 6 4.3 0.5 0.09 9706



Nakładki ślizgowe EMC GK9
Form (Kształt) a
[mm]
b
[mm]
S
[mm]
P/N
GK 9 5.7 0.6 0.05 9709



Nakładki ślizgowe EMC GK13, GK14
Form (Kształt) a
[mm]
b
[mm]
S
[mm]
P/N
GK 13  6.4  0.8  0.08  9713
GK 14  6.4  0.127  0.13  9714



Nakładki ślizgowe EMC GK17, GK18
Form (Kształt) a
[mm]
b
[mm]
S
[mm]
P/N
GK 17  8.7  0.8  0.05  9717
GK 18  8.7  0.8  0.10  9718



Nakładki ślizgowe EMC  GK21, GK22
Form (Kształt) a
[mm]
b
[mm]
S
[mm]
P/N
GK 21 8.7 0.8 0.08 9721
GK 22 8.7 0.8 0.10 9722
