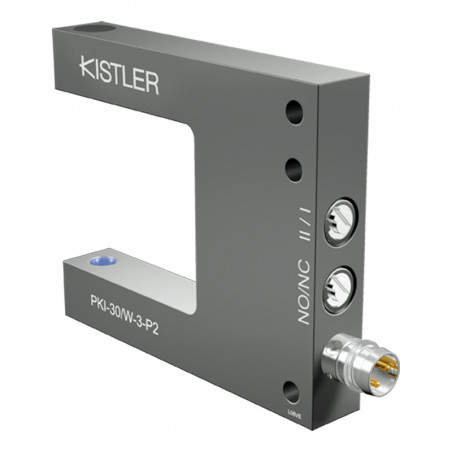

Slit light barriers (infrared light) of type PKI
  • Slit light barriers (infrared light) of type PKI

Photos are for informational purposes only. View product specification

Manufacturer: Vester

Slit light barriers (infrared light) of type PKI

Technical data

Circuit: chopped light trigger
Voltage: 12...30V
Current consumption: max 60mA
Operation: static
Output with LED: PNP
Function: bright-dark switch
Output current: 500 mA
Repeatability: < 0,02mm
Frequency: > 1kHz
Operating temperature: 0...60°C
EMC: IEC 801.... CE
Type of protection: IP 65

Accuracy

Type PKI-.../K:
gap width A: 10 - 20mm,
element diameter: 0,6 - 0,7-1mm.

Type PKI-...:
gap width A: 20 - 30 - 50 - 80mm,
element diameter: 0,7 - 0,8 - 0,9 - 1,2mm.

Dimensions [mm]

PKI-...-/K
PKI-10/K DO PKI-20/K ORAZ PKI-20 DO PKI-80 - PKI-.../K
PKI-...
PKI-10/K DO PKI-20/K ORAZ PKI-20 DO PKI-80 PKI...

Type Light barrier Dimensions Terminal 3-pole M8 socket
A B
PKI-10/K 6331-00000-0022 10 13 PKI-10/K DO PKI-20/K ORAZ PKI-20 DO PKI-80
PKI-20/K 6333-00001-0022 20 13
PKI-20 6333-00000-0022 20 20
PKI-30 6336-00000-0022 30 30
PKI-50 6374-00000-0022 50 50
PKI-80 6376-00000-0022 80 50
