Manufacturer: SALTEK

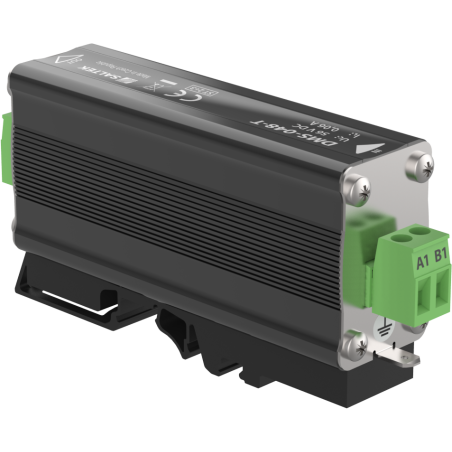

DMS-048T - Surge protector - SPD

  • DMS-048T
  • Rated voltage 48 V DC
  • Protection rating IP 20
  • Type of SPD C2
  • Maximum operating voltage 39.00 V AC
Parameter name Parameter value
Type of SPD C2
Location of SPD ST 2+3
Mounting DIN rail 35 mm
Nominal voltage Un 48 V DC
Maximum operating voltage Uc 39.00 V AC
Maximum operating voltage Uc 56.00 V DC
Nominal load current IL 0.060 A
Treshold frequency core-core f 1.80 MHz
Serial resistance per core R 8.00 Ω
C2 nominal discharge current (8/20 µs) per core In 5.00 kA
C2 total discharge current (8/20 µs) cores-PE ITotal 10.00 kA
C2 voltage protection level mode core-PE at In Up 450 V
C2 voltage protection level mode core-core at In Up 90 V
Response time core-core ta 1 ns
Response time core-PE ta 100 ns
Connection (input - output) terminals
Cross-section of connected conductors solid (max) 2.50 mm2
Cross-section of connected conductors stranded (max) 2.50 mm2
Degree of protection IP 20
Range of ambient temperatures (min/max) -40 / 70 °C
According to standard EN 61643-21+A1,A2:2013, IEC 61643-21+A1,A2:2012
ETIM Class EC001625
Customs tariff number 85363030
EAN 8595090565970
