Manufacturer: SALTEK

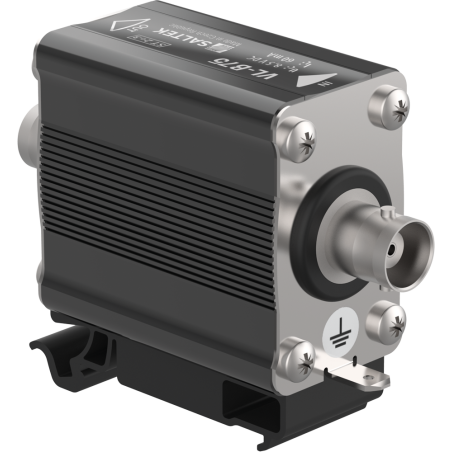

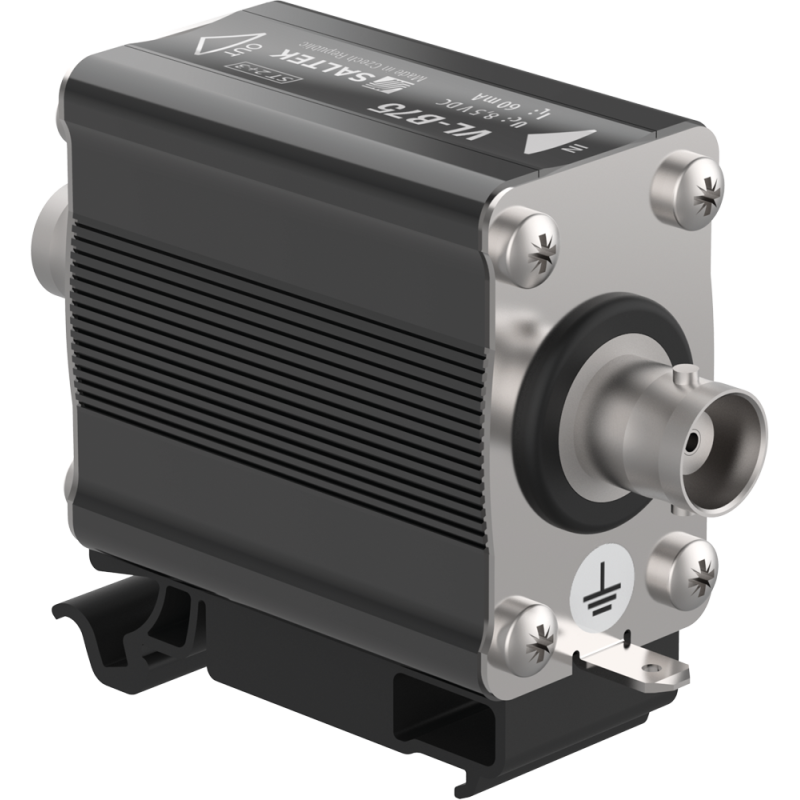

VL-B75 F/F - Surge protector - SPD

  • VL-B75 F/F
  • Protection rating IP 20
  • Type of SPD C2,C3
  • Maximum operating voltage 6.00 V AC
Parameter name Parameter value
Type of SPD C2,C3
Location of SPD ST 2+3
Mounting DIN rail 35 mm
Maximum operating voltage Uc 6.00 V AC
Maximum operating voltage Uc 8.50 V DC
Nominal load current IL 0.060 A
Serial resistance per core R 0.27 Ω
C2 nominal discharge current (8/20 µs) SH-PE In 5.00 kA
C2 nominal discharge current (8/20 µs) core-SH In 5.00 kA
C2 voltage protection level mode SH-PE at In Up 350 V
C2 voltage protection level mode core-SH at In Up 150 V
C3 voltage protection level mode SH-PE at 1 kV/µs Up 350 V
C3 voltage protection level mode core-SH at 1 kV/µs Up 35 V
Response time core-SH ta 1 ns
Response time SH-PE ta 100 ns
Connection (input - output) BNC 75
Degree of protection IP 20
Range of ambient temperatures (min/max) -40 / 80 °C
According to standard EN 61643-21+A1,A2:2013, IEC 61643-21+A1,A2:2012
ETIM Class EC001625
Customs tariff number 85363010
EAN 8595090533764
