Stop cylinders
Stop cylinders

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: AirTAC

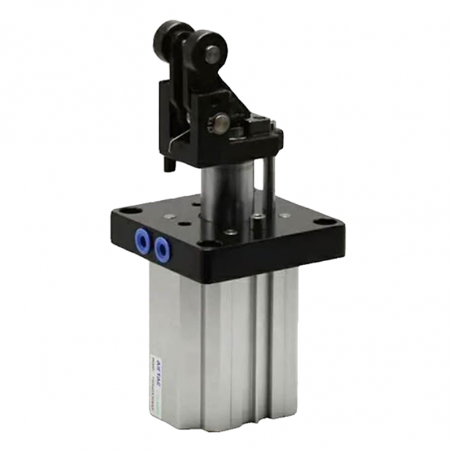

Stop cylinders

- used with tape conveyors
- added regulator shock shock absorber

Series TWHTWGTWMTWQ
Size  mm 20 25 32 40 50 63 80 32 40 50 50 20 25 32 40 50
Operation Double        Single
Medium Air
Temperature °C -20 - +80
Operation pressure 1.0~10.0bar (0.1~1.0MPa) (15~145psi)
Max pressure 15.0bar (1.5MPa) (215psi)
Amoritistaion type Buffer
Lubrication N/A
Assemble type Fran Thru.hole with thread
Terminal M5x0.8 1/8" 1.4" 1/8"
