Manufacturer: SALTEK

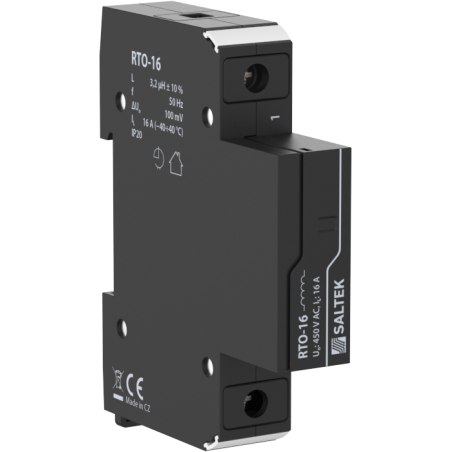

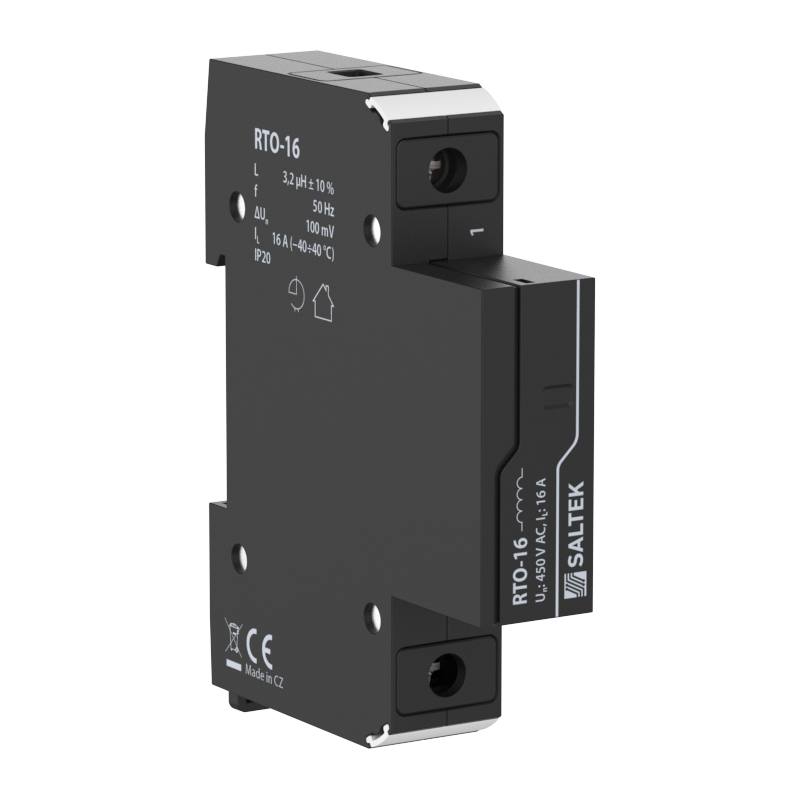

RTO-16 - Surge protector - SPD

  • RTO-16
  • Rated voltage 450 V AC
  • Protection rating IP 20
Parameter name Parameter value
Mounting DIN rail 35 mm
Nominal voltage Un 450 V AC
Nominal load current IL 16.000 A
Frequency f 50 Hz
Resistance R 7 mOhm
Inductance L 3.20 uH
Maximum overcurrent protection 16 A gL/gG or C 16 A
Power loss at IL 1.66 W
Cross-section of connected conductors solid (max) 10.00 mm2
Cross-section of connected conductors stranded (max) 10.00 mm2
Cross-section of connected wires stranded with ferrule (max) 10.00 mm2
Degree of protection IP 20
Range of ambient temperatures (min/max) -40 / 40 °C
ETIM Class EC002496
Customs tariff number 85363010
EAN 8595090541776
