Manufacturer: SALTEK

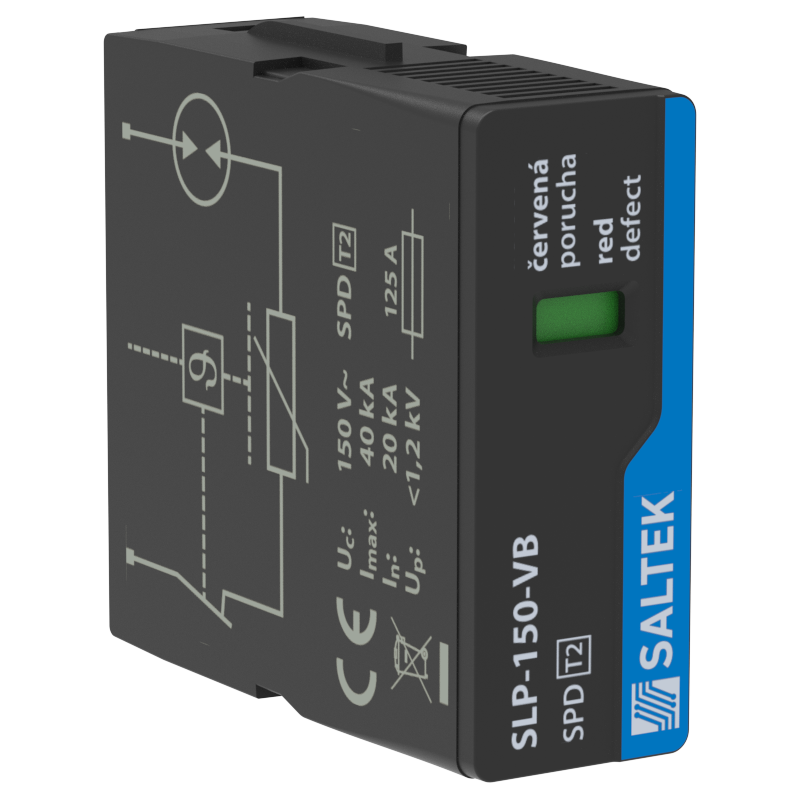

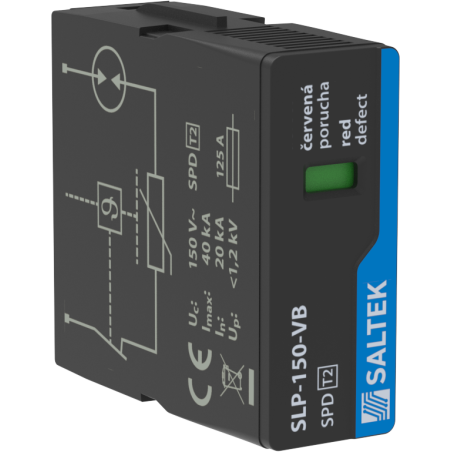

SLP-150-VB/0 - Surge protector - SPD

  • SLP-150-VB/0
  • Type of SPD T2
  • Maximum operating voltage 150.00 V AC
Parameter name Parameter value
Type of SPD T2
Maximum operating voltage Uc 150.00 V AC
Short-circuit current rating ISCCR 50.0 kA
Nominal discharge current (8/20 µs) In 20.00 kA
Maximum discharge current (8/20 µs) Imax 40.00 kA
Voltage protection level Up 1.20 kV
Response time ta 100 ns
Fault indication red indication field
ETIM Class EC000941
Customs tariff number 85363030
EAN 8595090570646
