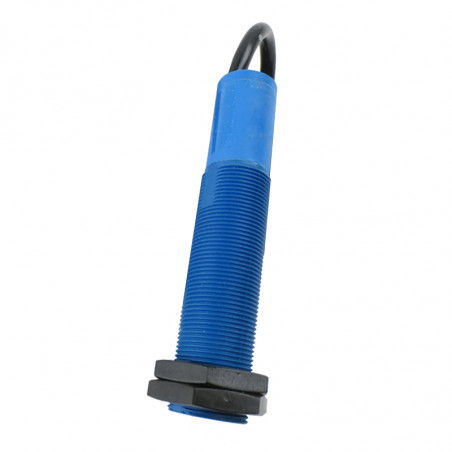

Ultrasound sensor with a digital connection - 942-T series
  • Ultrasound sensor with a digital connection - 942-T series

Photos are for informational purposes only. View product specification

Manufacturer: Honeywell

Ultrasound sensor with a digital connection - 942-T series

Ultrasound sensor with a digital connection - 942-T series

Technical data:
• Beam angle:
• Repeatability: 0,4% or ±2 mm
• Switching frequency: 5...30 Hz
• Reaction time: 19...30VDC
• IP: connector IP65
  front IP 67
• Casing: M30 x 1,5 mm , plastic (PBTB)




TypeMax measuring rangeMin. measuring range
2 switch over outputs PNP2NO/NC and analogue output 0-10V
942-T4N-2D-1C1-130E 3500 mm 350 mm
942-T4N-2D-1C1-180E 2000 mm 200 mm
942-T4N-2D-1C1-200E 1500 mm 150 mm
2 switch over outputs PNP 2NO/NC analogue output 4-20 mA
942-T4N-2D-1D1-130E 3500 mm 350 mm
942-T4N-2D-1D1-180E 2000 mm 200 mm
942-T4N-2D-1D1-200E 1500 mm 150 mm

Dimensions [mm]:
