Manufacturer: B&B Electronics

USB/RS-422/485 converter with USOPTL4 optoinsulation

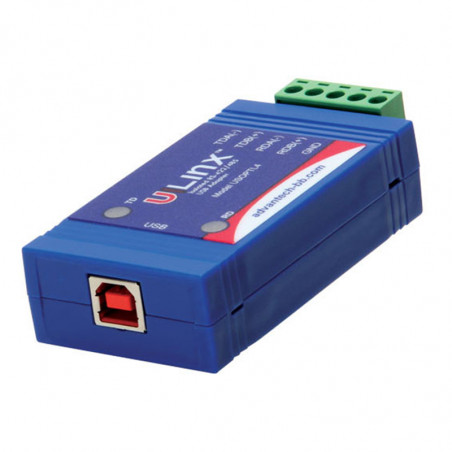

USOPTL4 is an industrial USB to RS-422/485 converter with optoisolation that provides easy and secure communication between a device with an RS-232/422/485 serial interface and a USB port. Optical isolation ensures an effective connection and protects the computer from interference and power surges. This converter supports 2-wire RS-485 and 4-wire RS-422/485.

Parameters:

- Optical isolation 2000 V RMS
- USB connectors with enhanced pull-out resistance
- Additional COM port for PC
- Protection against surges and short circuits
- LED indicators for transmitting and receiving lines
- USB 1.0, 1.1, and 2.0 (12Mbs)
- Automatic configuration for Windows 2000, XP, Vista, and Win7
- Powered via USB
- Includes 1m USB cable and software CD
- Dimensions: 8.9 x 4.3 x 2.1 [cm]
- 5-year warranty

RS-232 to USB converter

• Supports handshake lines such as: (TD, RD, RTS, CTS, DTR, DSR, DCD, RI, GND)
• DB9 male connector (DTE)
• Speed ​​up to 460 Kbps


RS-422/485 to USB converter

• Terminal block
• Supports handshake lines such as: TDA, TDB, RDA, RDB, GND
• Speed ​​up to 921 Kbps
• RS-485 2-wire or RS-422/485 4-wire
• Supports SDC (Send Data Control)

USOPTL4 USB/RS-422/485 converter with optoisolation
