Manufacturer: B&B Electronics

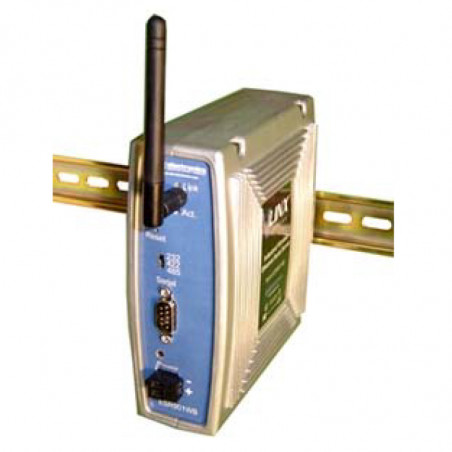

WIFI server port Steregowegors232 / RS422 / RS485-DIN-ESR901WB rail

This family of wireless Ethernet serial connection servers allows for transparent connection and configuration of serial devices, and communication at 54 Mbps using the 802.11g standard and with 11 Mbps Wi-Fi connections compliant with the 802.11b standard. For applications where cable installation is not possible, the Vlinx™ ESR solution offers a combination of wireless network connectivity with proven asynchronous connectivity. 1, 2, and 4-port models are available, supporting RS-232, RS-422, and RS-485 interfaces.

Features

• 2.4 GHz IEEE 802.11g DSSS radio transmitter
• 802.11g provides 100% compatibility with 802.11b
• Rugged IP30 housing, DIN rail or panel mount
• Protocols: TCP, IP, ARP, DHCP, HTTP, UDP, ICMP
• LED indicators provide device status information: power, signal strength, LAN link, data
• Security: Password protection for administrator/configuration functions
• Configuration modes: TCP server, TCP client, Virtual COM port

Benefits

• Wireless connection of legacy serial devices to a LAN; Eliminate cabling installation costs
• Easy installation and configuration via built-in software or a web server
• Remote device monitoring and diagnostics
• Ideal for applications requiring COM ports, serial tunneling, TCP sockets, or UDP sockets
• Field-upgradeable scalability protects your infrastructure investment.

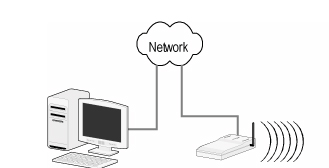

Wireless connection of legacy serial devices in accordance with the 802.11 standard - access point Wireless connection of legacy serial devices in accordance with the 802.11 serial device standard
PC

Access Point

901WB

 Serial Device

Specifications

Norm:
IEEE 802.11 b/g
Wireless transfer rate (Mbps):
54 ("g" version only), 11, 5.5, 2, 1
Channels:
11 (US/Canada), 13 (Europe), 14 (Japan)
Supported protocols:
TCP, UDP, DHCP, HTTP, ICMP, ARP
RS-232 support:
TD, RD, RTS, CTS, DTR, DCD, DSR, GND
RS-422 Support:
4-wire, full-duplex
RS-485 Support:
4-wire half/full-duplex, depending on the model
Serial Baud Rate
110, 150, 300, 600, 1200, 2400, 4800, 9600, 14400,19200, 28800, 38400, 57600, 115200,230400
Serial connector
DB9 male
Data bit:
5,6,7,8
Data Parity:
Tag, Space, None, Even, Odd
Stop Bit
1,2
Transfer Control:
None, RTS/CTS, XON/XOFF
Management:
Web Browser
Client Software:
Virtual COM Port Driver, Detection Software
VCOM Operating System:
Windows 98, ME, 2K, XP, NT 4.0, Vista
Communication Mode:
Virtual COM Port Mode, Direct IP Mode, Paired Mode
Certifications:
FCC, CE
Antenna:
Omnidirectional, reverse polarity SMA connector (included)
Supply voltage:
10 to 30VDC. terminal block
Radio transmission power:
16dBm
LAN RJ-45:
None
Operating temperature:
0° to 70° C
Storage Temperature:
-40 to 85°C
Relative Humidity:
10 to 90% non-condensing
Status Indicators:
Power Link Transmission Signal Strength
Dimensions:
17.4x14.5x5.8 cm 17.4 x 14.5x5.8 cm
*MEI=Multi-Electrical Interface implemented through RS-232/422/485
