Standard concentric connectors, BNC 50 Ω series
Standard concentric connectors, BNC 50 Ω series

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Radiall

Standard concentric connectors, BNC 50 Ω series

BNC connectors with bayonet lock for general applications

Good electrical and mechanical parameters. Connections via glands and crimping.
High durability. Suitable for high-frequency signals.

Standards and technical specifications: MIL-C-39012, IEC 169-8, CECC 22120, NF-C-93564, KBN series

Impedance:
 50 Ω 75 Ω
Operating frequency:
- possible:
up to 10GHz up to 1.5GHz
- recommended:
up to 4GHz up to 1GHz
Operating/test voltage:
 500/ 1500Vrms
Operating temperature:
- 65°C to 165°C

Material:
Flexible parts:
 Machined beryllium bronze
Metal parts:
Nickel-plated brass
Insulating parts:
PTFE - Teflon
Seals:
silicone elastomer
Inner wire:
gilded

Manufacturer no. Description
Standard coaxial connectors, BNC series 50 Ω R 141 003 000 W

R 141 003 000 W

Cable plug
with gland
cable Ø 2mm, RG 178, 50 Ω
dimension a = 2.2mm max.

R 141 004 000 W

Cable connector
as above, but
RG 174 cable, 50 + 75 Ω
dimension a = 3.0 mm max.
Standard coaxial connectors, BNC series 50 Ω R 141 007 000 W

R 141 007 000 W*)

Cable plug
UG-88/U, with cable gland
Cable Ø 5mm, RG 58, 50 Ω
dimension a = 5.6mm max.
*) Available at a favorable price in the industrial version, see item no. 095 62 30

R 141 011 000 W

Cable plug
UG-260/U, with gland
cable Ø 6mm, RG 59, 75 Ω
dimension a = 6.6mm max.
Standard coaxial connectors, BNC series 50 Ω R 141 008 000 W

R 141 008 000 W

Cable plug
UG-88 C/U, with gland
cable Ø 5mm, RG 58, 50 Ω
dimension a = 5.6mm max.

R 141 009 000 W

Cable plug
UG-88 E/U, KBN 1, gland
cable Ø 5mm, RG 58, 50 Ω
dimension a = 5.6mm max.
Standard coaxial connectors, BNC series 50 Ω R 141 010 000 W

R 141 010 000 W

Cable plug
UG-88 G/U, with gland
Inner conductor for soldering or crimping.
cable Ø 5mm, RG 58, 50
dimension a = 5.6mm max.
Standard coaxial connectors, BNC series 50 Ω R 141 012 000 W

R 141 012 000 W

Cable plug
UG-260 B/U
cable Ø 6mm, RG 59, RG 62
75 + 93 Ω.
Dimension a = 6.6mm max.

R 141 018 000 W

Cable plug
with gland
cable Ø 11mm,
RG 213, 50Ω
Standard coaxial connectors, BNC series 50 Ω R 141 075 000 W

R 141 075 000 W*)

Cable plug
for crimping
Cable Ø 2.6 mm, RG 174, 50 Ω
Dimension a = 3.0 mm max.
*) Available at a favorable price in the industrial version.
See item no. 095 62 40
Standard coaxial connectors, BNC series 50 Ω R 141 082 000 W

R 141 082 000 W*)

Cable plug
UG-1785/U, KBN 21
for crimping
cable Ø 5mm, RG 58, 50 Ω
dimension a = 5.5mm max.
*) Available at a favorable price in the industrial version.
see item no. 095 62 50
Standard coaxial connectors, BNC series 50 Ω R 141 156 000 W

R 141 156 000 W

Angled cable plug
UG-913 A/U, KBN 33
with cable gland
cable Ø 5mm, RG 58, 50 Ω
dimension a = 5.6mm max.
Standard coaxial connectors, BNC series 50 Ω R 141 182 000 W

R 141 182 000 W

Angled cable plug
for crimping
cable Ø 5mm, RG 58, 50 Ω
dimension a = 5.6mm max.
Standard coaxial connectors, BNC series 50 Ω R 141 206 000 W

R 141 206 000 W

Cable socket
UG-89/U, with cable gland
cable Ø 5mm, RG 58, 50 Ω
dimension a = 5.6mm max.
Standard coaxial connectors, BNC series 50 Ω R 141 207 000 W

R 141 207 000 W

Cable socket
UG-89 C/U, with gland
cable Ø 5mm, RG 58, 50 Ω
dimension a = 5.6mm max.

R 141,210,000 W

Cable socket
UG-261 C/U, with cable gland
cable Ø 6mm, RG 59, RG 6275 + 93 Ω
dimension a = 6.6mm max.
Standard coaxial connectors, BNC series 50 Ω R 141 277 000 W

R 141 277 000 W

Cable socket
with insulated, square collar with gland
cable Ø 2.6 mm, 50 + 75 Ω
dimension a = 3 mm max.
collar with 4 holes Ø 2.6
Standard coaxial connectors, BNC series 50 Ω R 141 237 000 W

R 141,237,000 W

Cable socket
UG-1794/U, for crimping
cable Ø 5mm, RG 58, 50 Ω
dimension a = 5.6mm max.
Standard coaxial connectors, BNC series 50 Ω R 141 306 000 W

R 141 306 000 W

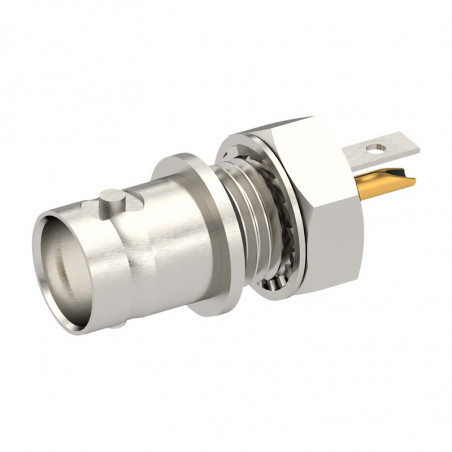

Panel socket
installation in the hole, for crimping
cable Ø 2.6mm, 50 + 75Ω
dimension a = 3mm max.

Standard coaxial connectors, BNC series 50 Ω R 141 308 000 W

R 141 308 000 W

Panel socket
In-hole mounting, for crimping
Cable Ø 5mm, RG 58, 50 Ω
Dimension a = 5.5mm max.

R 141 324 00 W

Panel socket
hole mounting, waterproof, with cable gland
cable Ø 2.6mm, 50 + 75 Ω
dimension a = 3mm max.
Standard coaxial connectors, BNC series 50 Ω R 141 327 000 W

R 141 327 000 W

Panel socket
hole-mounted, waterproof, with cable gland
cable Ø 5mm, RG 58, 50 Ω
dimension a = 5.6mm max.
Standard coaxial connectors, BNC series 50 Ω R 141 332 500 W

R 141 332 500 W

Panel socket
for hole mounting, waterproof,
for crimping, cable Ø 5mm, RG 58, 50 Ω
dimension a = 5.5mm max.
Standard coaxial connectors, BNC series 50 Ω R 141 404 000 W

R 141 404 000 W

Panel socket
UG-290 A/U, KBN 15
with square flange,
4 x M 2.5 thread
soldered pins

R 141 407 000 W

Panel socket
KBN 15 A,
as above, but square flange with 4 x Ø 2.6
Standard coaxial connectors, BNC series 50 Ω R 141 410 000 W

R 141 410 000 W

Panel socket
with insulated, square
flange with 4 x Ø 2.6

R 141 554 000 W

Panel socket
UG-625 B/U,
for through-hole mounting,
Ø 11.2 mm hole,
soldered leads
Standard coaxial connectors, BNC series 50 Ω R 141 557 000 W

R 141 557 000 W*)

Panel socket
UG-1094/U,
for hole mounting, hole Ø 9.7 mm
soldered leads
*) Available at a favorable price in the industrial version,
see part number 095 62 00

Standard coaxial connectors, BNC series 50 Ω R 141 559 000 W

R 141 559 000 W

Panel socket
UG-1094 B/U,
KBN 28, through-hole mounting, Ø 9.7 mm hole
soldered leads, insulated mounting possible with insulating pads
R 280 902 000 Ω
Standard coaxial connectors, BNC series 50 Ω R 141 572 000 W

R 141 572 000 W

Panel socketfor isolated mounting through-hole mounting,
Ø 12.8 mm hole,
soldered leads
Standard coaxial connectors, BNC 50 Ω R 141 440 series

R 141 440 000 W

Panel plug
with square flange
thread 4x M2.5 x 0.45
Standard coaxial connectors, BNC series 50 Ω

R 141 574 000 W*)

Panel socketfor isolated mounting
through-hole mounting,
Ø 9.7mm hole,
soldered leads
Standard coaxial connectors, BNC 50 Ω series

R 141 603 000 W

Panel socket
UG-657/U insulator
Q-200-5 installation in a hole,
waterproof

R 141 605 000 W

Panel socket
UG-657 A/U PT FE insulator
hole mounting,
waterproof

Standard coaxial connectors, BNC 50 Ω series

R 141 625 000 W

Panel socket
UG-912/U, KBN 27
hole mounting,
hermetically sealed
Standard coaxial connectors, BNC 50 Ω series

R 141 426 161 W

Panel socketfor PCB, straight
suitable for 50 and 75 W up to 1.5 GHz
Standard coaxial connectors, BNC 50 Ω series

R 141 665 161 W

Panel socketfor PCB, angled
suitable for 50 and 75 Ω
up to 1.5 GHz

Standard coaxial connectors, BNC 50 Ω series

R 141 703 000 W

UG-491 B/U Adapter Connector, male to male, straight
Standard coaxial connectors, BNC 50 Ω series

R 141 704 000 W

UG-914/U adapter connector, socket to socket, straight
Standard coaxial connectors, BNC 50 Ω series

R 141 720 000 W*)

Transition connector
socket-to-socket
mounting in a hole,
hole Ø 12.8 mm
insulated mounting with washers possible R 280 907
*) Available at a favorable price in the industrial version, see item no. 095 62 10
Standard coaxial connectors, BNC series 50 Ω R 141 723 000 W

R 141 723 000 W

Adapter connector
socket-to-socket
hole mounting, Ø 12.8mm hole, insulated
Standard coaxial connectors, BNC series 50 Ω R 141 753 000 W

R 141 753 000 W

Transition connector
UG-492 B/U, socket-to-socket
hole mounting, Ø 12.8mm hole
hermetic
Standard coaxial connectors, BNC series 50 Ω R 141 770 000 W

R 141 770 000 W

Adapter connector
UG-306 B/U, KBN 5-pin socket - plug, angled
Standard coaxial connectors, BNC series 50 Ω R 141 780 000 W

R 141 780 000 W

Transition connector
UG-274 B/U, KBN 19
T-piece, socket - socket - plug
Standard coaxial connectors, BNC series 50 Ω R 141 782 000 W

R 141 782 000 W

Adapter connector
socket-socket-socket tee

Standard coaxial connectors, BNC series 50 Ω R141 789 000

R 141 789 000 W

Adapter connector
plug-socket-socket tee

R 141 812 000 W

Protective cap
CW 123 A/U
for plug-in sockets with chain
Standard coaxial connectors, BNC series 50 Ω R 141 862 000

R 141 862 000 W

CW 159/U shorting plug with chain
