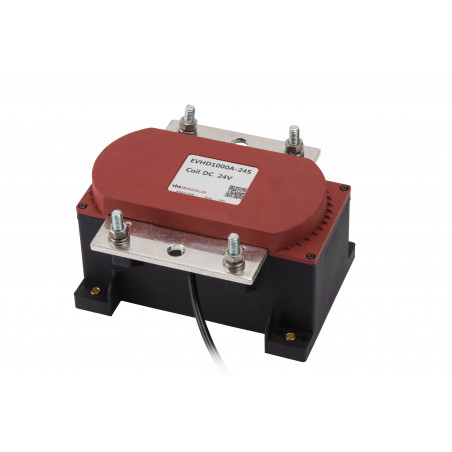

EVHD1000 DC Relay
  • EVHD1000 DC Relay

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: YM Tech

EVHD1000 DC Relay

  • EVHD1000

Application

  • Charging System,
  • Battery Energy Storage System,
  • Solar System,
  • etc.

Magnet coil ratings

Nominal voltage(V) Inrush Coil current 100ms (Max.) Holding Coil current (mA) Pick-up voltage (V)Max. Drop-out voltage (V)Min Holding voltage (V)Min. Max. voltage (V)Max
B 60 2.8A 0.13A 32VDC 18VDC 22VDC 60VDC
48 2.5A 0.20A
36 2.0A 0.25A
A 36 4.2A 0.32A 9VDC 6VDC 7.5VDC 36VDC
24 4.0A 0.45A
12 3.8A 0.70A
12 3.8A 0.7A 9VDC 6VDC 7.5VDC 18VDC
24 2.2A 0.35A 18VDC 12VDC 13.5VDC 32VDC

Contact ratings

Type 2Pole Resistive load (L/R≤1㎳)
Continuous current (wire size 325㎟) 1000A
Max. switching current 750VDC 800A
500VDC 1000A
1500VDC 200A
Max. switching Voltages 1500VDC / 1,000VAC
Contact Rating switching voltages 12~1500V DC / 1,000VAC
Voltage drop across contacts per 100A 20mV Max
Min. permissible load 12VDC 0.5A
Description S.P On/Off (a)
Contact Arrangement, auxiliary contacts 1Form A (SPST-NO.)
General Aux. Contact Current, Max. 2A 30VDC / 3A 125VAC
General Aux. Contact Current, Min. 100mA 8VDC
Gold alloy Aux. Contact Max. 0.1A 30VDC / 0.1A 30VAC
Gold alloy Aux. Contact Min 1mA 5VDC / 1mA 5VAC
