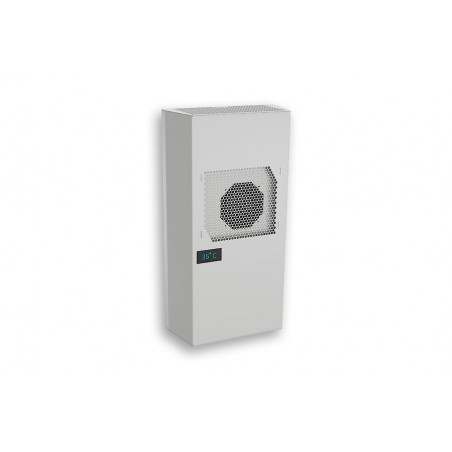

COMPACT INDOOR 43051081
  • COMPACT INDOOR 43051081

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: SEIFERT mtm SYSTEM

COMPACT INDOOR 43051081

  • 43051081
  • Dimensions 715 x 372 x 260 (170+90) mm
  • Rated current 440 W
  • Working temp. range 10°C - +55°C
  • Voltage frequency 120 V ~ 60 Hz
  • Mounting methods Wpuszczany
  • Starting current 19.1 A
  • Max. Current 5.3 A
  • Max. Power 560 W
  • Refrigerant / GWP R134a / 1430
  • Cooling capacity of L35L35 620 W
  • Cooling capacity of L35L50 440 W
  • Compressor Sprężarka tłokowa
  • Refrigerant Charge 163 g / 5.7 oz
  • High / Low Pressure 23.3 / 5.3 bar 338 / 77 psig
  • Cut Out Dimension 316 x 654 mm
  • Current L35L35 4.4 A
  • Air Flow Volume (System / Unimpeded) Obieg powietrza z otoczenia - 435 / 550 m³/h Obieg powietrza szafy - 200 / 250 m³/h
  • Weight 33.7 kg
Features
the nano-coated condensor allows a filterless operation
practical maintenance free
adjustable electronic controller with color display
for aggressive or polluted environments, upgradeable filter options
wall mounted or recessed
Brand Name SoliTherm ComPact
Order Number 43051081
Colour RAL 7035
Housing Material Mild steel, powder coated
Ingress Protection IP 54
Approvals CE, cURus, cULus
