ELECTROAIR® KU 01, 03, 04
ELECTROAIR® KU 01, 03, 04

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: OMERIN

ELECTROAIR® KU 01, 03, 04

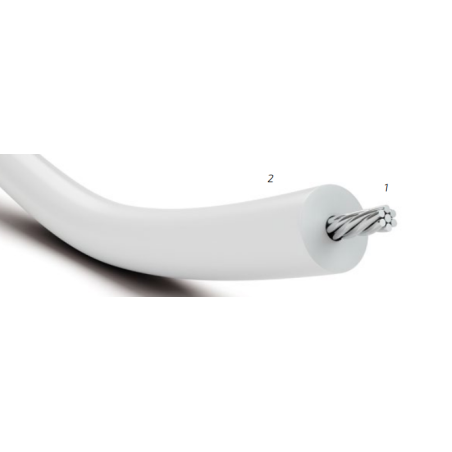

Wire Specifications

  • 1 Tinned Copper Core
  • 2 Fluorinated Polymer ETFE

Standards

  • Construction:
  • NF C 93-524

Properties

  • IEC 60332-1
  • C2 NF C 32-070
  • FAR 25

Features

  • Thermal: Continuous Operating Temperature: -55°C to +150°C
  • Electrical: Operating Voltage: 600 V RMS
  • Mechanical: Abrasion resistance: ★★★★★
  • Chemical:
    • Chemical resistance: ★★★★★
    • Moisture resistance: ★★★★★
    • Aircraft fluid resistance: ★★★★★
  • Fire-smoke: Flame retardant
    • IEC 60332-1 / C2 NF C 32-070 / FAR 25
  • Radiation resistance: Excellent Resistance

Color Code

  • KU 01 = Red, Blue, Yellow, Green, White, Black, Brown, Orange, Purple, Gray
  • KU 03 = White / Blue
  • KU 04 = White / Blue / Orange
  • Other colors available upon request.

Applications

Lightweight electrical cables used in electronic equipment for aircraft, missile systems, or aerospace test stands.

KU 01

AWG

Cross-section (mm²)

Construction (n x mm)

Cable Outer Diameter (mm) min

Cable Outer Diameter (mm) max

Approximate Linear Weight (kg / km)

Maximum Linear Resistance at 20°C (Ω / km)
30 0.06 7 x 0.10 0.58 0.68 0.9 365.4
28 0.09 7 x 0.13 0.74 0.84 1.5 208.0
26 0.14 7 x 0.16 0.90 1.00 2.3 126.0
24 0.23 19 x 0.10 1.05 1.15 3.3 76.6
22 0.34 19 x 0.13 1.20 1.30 4.8 48.2
20 0.62 19 x 0.16 1.40 1.50 6.8 29.1
18 0.93 19 x 0.20 1.75 1.85 11.3 18.5
16 1/09 37 x 0.25 2.25 2.35 21.4 13.0
14 1.93 37 x 0.32 2.79 2.89 31.8 6.5

KU 03

1.92
AWG

Outer diameter of the cable (mm)

Approximate linear weight (kg / km) max

Approximate linear weight (kg / km) min
30 1.10 1.16 3.20
28 1.28 1.48 4. 50
26 1.50 1.70 7.24
24 1.72 1.92 10.3
22 2.12 15.1
20 2.25 2.45 21.0
18 2.58 2.78 28.6< /td>
16 3.42 3.62 44.9
14 4.58 4.82 71.0

KU 04

AWG Cable outer diameter (mm) Approximate linear weight (kg / km) max Approximate linear weight (kg / km) min
30 1.20 1.25 1.34
28 1.40 1.44 1.65
26 1.60 1.64 2.10
24 1.82 1.86 3.41
22 2/10 2.14 5.50
20 2.40 2.45 7.86
18 2.76 2.81 11.4
16 3.42 3.48 16.0
14 4.63 4.68 23.6
