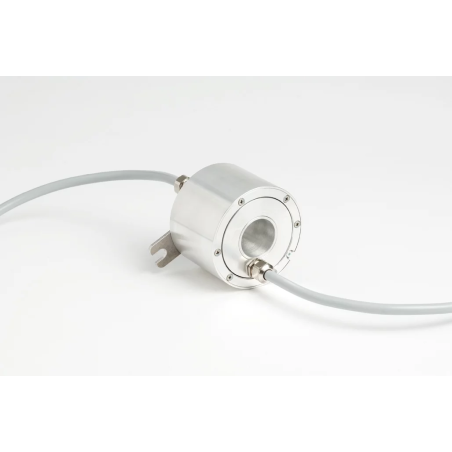

SLIP RING SC 080
SLIP RING SC 080

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: LTN SERVOTECHNIK GMBH

SLIP RING SC 080

SLIP RING SC 080

FACTS

  • Max. 24 rings with 3 A or max. 12 rings with 16 A
  • Rings with 3 A or 16 A can be combined
  • Outher diameter 80 mm
  • Inner diameter max. 30 mm
  • 240 VAC / 240 VDC

ELECTRICAL DATA

Number of rings: max. 24 rings pairwise with 3 A; max. 12
Voltage: max. 240 VAC/ 240DC
High pot: 500 VAC
Insulation resistance: 1000 MΩ at 500 VDC
Noise: 20 mΩ at 10 VDC / 1 A
Rated speed: 250 min-1 for gold contacts or 1000 min-1 for silvercarbone on brass rings
Protection class: IP 54; IP 64 on request
Temperature: -20 °C ... +80 °C (-5 °F ... +175 °F)
Rotor / Stator conn.: 1000 mm cable or leads; other lengths on request
Bearings: Ball bearings of steel
Housing: Aluminium
