Manufacturer: Acer Voltage

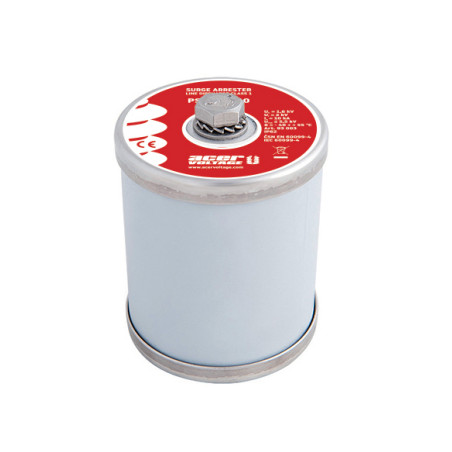

PSPI 36/10kA - Surge arrester - 91113

  • PSPI 36/10
  • Rated voltage 45 kV
  • Height 380 mm
  • Protection rating IP62
  • Working temp. range - 40°C ... + 55 °C
  • Weight 3,5 kg
  • Maximum operating voltage 36 kV
  • Nominal discharge current (8/20) 10 kA
  • High impulse current (4/10) 2 x 100 kA
  • Long current impulse (2 ms) 400 A
  • Discharge class acc. to EN 60099-4 1
  • Residual voltage at In ≤ 135 kV
PSPI */10 kA - Energy Class 1 (discharge) - surge arresters designed to protect high-voltage distribution networks, transformers, switchgear, and HV distribution cables from atmospheric and switching overvoltages. Protection against atmospheric or switching overvoltages in AC networks and transients. Suitable for protecting transformers, cables, motors, switches, disconnectors, and other high-voltage devices. The functional component of the arresters is a column of varistors sized for the maximum continuous operating voltage Uc. The housing material exhibits high resistance to surface currents resulting from charge flow or electric arcs. It has hydrophobic properties and demonstrates excellent resistance to atmospheric conditions, pollution, and UV radiation. Cover lids, connection screws, nuts, and terminals are made of stainless steel. The design and technical parameters of the PSP series surge arresters comply with the standards ČSN EN 60099‑4 ed. 3: 2018 and IEC 60099‑4: 2014.
