Photos are for informational purposes only. View product specification
please use latin characters

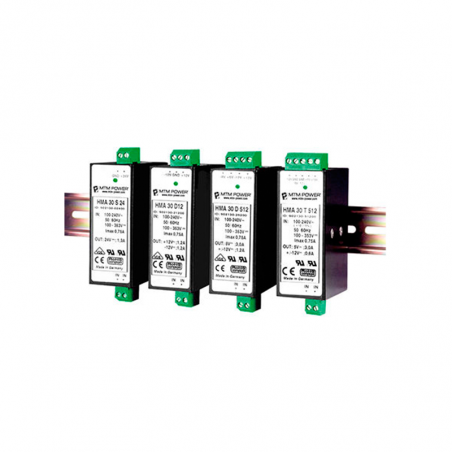

HMA Series
Technical data
Power
|
15W, 30W
|
input voltage
|
85...264 VAC / 100 . 375 VDC
|
Output voltage
|
3,3 V, 5 V, 12 V, 15 V, 24 V, 48V, ±5V, ±12 V, ±15 V, 5/12V, 5/15 V, 5/24 V, 5/±12 V, 5/±15V.
|
Efficiency
|
≥ 78%
|
Operation temperature range
|
-25...+65 °C
|
Casing
|
UL94-V0
|
Dimensions (W x L X H)
|
35,0 x 70,0 x 113,0 mm
|
Seria HMA
Technical data
Power
|
15W, 30W
|
input voltage
|
30/36...60 VAC / 30/36...72 VDC
|
Output voltage
|
5 V, 12 V, 15 V, 24 V, 48V, ±5V,
|
±12 V, ±15 V, 5/12V, 5/15 V, 5/24 V,
|
|
5/±12 V, 5/±15V.
|
|
Efficiency
|
≥ 78%
|
Operation temperature range
|
-25...+65 °C
|
Casing
|
UL94-V0
|
Dimensions (W x L X H)
|
35,0 x 70,0 x 113,0 mm
|
Seria HSA
Technical data
Power
|
15W, 30W, 75W
|
|
input voltage
|
85...264 VAC / 100 . 375 VDC
|
|
Output voltage
|
5 V, 12 V, 13,8 V, 15 V, 24 V, 48V
|
|
Efficiency
|
≥ 85%
|
|
Operation temperature range
|
-25...+70 °C
|
|
Casing
|
UL94-V0
|
|
Dimensions (W x L X H)
|
42,0 x 75,0 x 115,0 mm
|
Seria HSAP
Technical data
Power | 120W, 240 W (HSA) / 240 W (HSAP) |
input voltage | 94...264 VAC |
Output voltage | 12 V, 13 - 15 V, 24 V, 36V, 48V |
Efficiency | ≥ 89% |
Operation temperature range | -25...+70 °C |
Efficiency | HSAP: 0,98 (EN 61 00-3-2, lout = lnom) |
Dimensions (W x L X H) | HSA 120 :50,0 x 130,0 x 130,0 mm |
HSA 240: 80,0 x 130,0 x 130,0 mm | |
HSAP 240:120,0 x 130,0 x 130,0 mm |
Seria HMG
Technical data
Power
|
15W, 30W
|
input voltage
|
20...72 VDC
|
Output voltage
|
5 V, 12 V, 13,8 V, 15 V, 24 V, 48V, ±12 V, ±15V, 5/12 V, 5/15 V, 5/24 V, 5/±12, 5/±15V
|
Dokładność
|
bis zu ≥ 80%
|
Operation temperature range
|
-25...+65 °C
|
Casing
|
UL94-V0
|
Dimensions (W x L X H)
|
35,0 x 70,0 x 113,0 mm
|
Seria HSD
Technical data
Power | 60W |
input voltage | 16,8...50,4 VDC / 50,4...154 VDC |
Output voltage | 5,2 V, 12 V, 24V |
Dokładność | bis zu ≥ 85% |
Operation temperature range | -25...+65 °C |
Casing | UL94-V0 |
Dimensions (W x L X H) | 37,0 x 76,0 x 116,0 mm |
U OUT | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
single | double | Triple | |||||||||||||
Seria | 3,3 V | 5V | 12V | 15V | 24 V | 48 V | ±5V | ±12V | ±15V | 5/12 V | 5/15 V | 5/24 V | 5/±12V | 5/±15V | dimension [mm] |
Seria HMA | |||||||||||||||
HMA15 | 3,0 A | 3,0 A | 1,3 A | 1,0A | 0,6 A | 0,3 A | +0,6/ -0,4 A | +0,5/ -0,4 A | +1,0/ -0,4 A | 1,0/ 0,4 A | 1,0/ 0,3 A | 1,6/ ±0,15 A | 1,6/ 0,15 A | 35,0x70,0x113,0 | |
HMA30 | 6,0 A | 6,0 A | 2,5 A | 2,0 A | 1,3 A | 0,6 A | +1,2/ -1,2 A | +1,0/ -1,0 A | 3,0/ 1,2 A | 3,0/ 1,0 A | 3,0/ 0,6 A | 3,0/ ±0,6 A | 3,0/ ±0,5 A | 35,0x70,0x113,0 | |
HMA50 | 7,5 A | 3,3 A | 2,6 A | 2,0 A | 1,0 A | 35,0x70,0x113,0 | |||||||||
Seria HMN | |||||||||||||||
HMN15 | 3,0 A | 1,3 A | 1,0A | 0,6 A | 0,3 A | +0,6/ -0,4 A | +0,5/ -0,4 A | 1,0/ 0,4 A | 1,0/ 0,4 A | 1,0/ 0,3 A | 1,6/ ±0,15 A | 1,6/ ±0,15 A | 35,0x70,0x113,0 | ||
HMN30 | 6,0 A | 2,5 A | 2,0 A | 1,3 A | 0,6 A | +1,2/ -1,0 A | +1,0/ -0,8 A | 3,0/ 1,0 A | 3,0/ 0,8 A | 3,0/ 0,5 A | 3,0/ ±0,5 A | 3,0/ ±0,4 A | 35,0x75,0x115,0 | ||
Seria HSA | |||||||||||||||
HSA30 | 3,5 A | 1,6 A | 1,3 A | 1,3 A | 0,5 A | 29,0x75,0x115,0 | |||||||||
HSA50 | 10,0 A | 4,2 A | 3,3 A | 2,1 A | 1,4 A | 1,0 A | 42,0x75,0x115,0 | ||||||||
HSA75 | 6,3 A | 5,0 A | 3,1 A | +6,0/ -4,0 A | +6,0/ -2,0 A | 42,0x75,0x115,0 | |||||||||
HSA120 | 10,0 A | 8,0 A | 5,0 A | 3,3 A | 2,5 A | 50,0x130,0x130,0 | |||||||||
HSA240 | 17,0 A | 14,0 A | 10,0 A | 6,6 A | 5,0 A | 80,0x130,0x130,0 | |||||||||
HSAP240 | 10,0 A | 120,0x130,0x130,0 | |||||||||||||
Seria HMG | |||||||||||||||
HMG15 | 3,0 A | 1,3 A | 1,0A | 0,6 A | 0,3 A | +0,6/ -0,4 A | +0,5/ -0,4 A | 1,0/ 0,4 A | 1,0/ 0,4 A | 1,0/ 0,3 A | 1,6/ ±0,15 A | 1,6/ ±0,15 A | 35,0x70,0x113,0 | ||
HMG30 | 5,0 A | 2,5 A | 2,0 A | 1,3 A | 0,6 A | ±1,0 A | ±0,8 A | 2,5/ 1,0 A | 2,5/ 0,8 A | 2,5/ 0,5 A | 2,5/ ±0,5 A | 2,5/ ±0,4 A | 35,0x70,0x113,0 | ||
Seria HSD | |||||||||||||||
HSD60 | 5,0 A | 2,5 A | 67,0x76,0x116,0 |
Send an inquiry
Are you interested in this product? Do you need additional information or individual pricing?
Contact us
HMA Series
Technical data
Power
|
15W, 30W
|
input voltage
|
85...264 VAC / 100 . 375 VDC
|
Output voltage
|
3,3 V, 5 V, 12 V, 15 V, 24 V, 48V, ±5V, ±12 V, ±15 V, 5/12V, 5/15 V, 5/24 V, 5/±12 V, 5/±15V.
|
Efficiency
|
≥ 78%
|
Operation temperature range
|
-25...+65 °C
|
Casing
|
UL94-V0
|
Dimensions (W x L X H)
|
35,0 x 70,0 x 113,0 mm
|
Seria HMA
Technical data
Power
|
15W, 30W
|
input voltage
|
30/36...60 VAC / 30/36...72 VDC
|
Output voltage
|
5 V, 12 V, 15 V, 24 V, 48V, ±5V,
|
±12 V, ±15 V, 5/12V, 5/15 V, 5/24 V,
|
|
5/±12 V, 5/±15V.
|
|
Efficiency
|
≥ 78%
|
Operation temperature range
|
-25...+65 °C
|
Casing
|
UL94-V0
|
Dimensions (W x L X H)
|
35,0 x 70,0 x 113,0 mm
|
Seria HSA
Technical data
Power
|
15W, 30W, 75W
|
|
input voltage
|
85...264 VAC / 100 . 375 VDC
|
|
Output voltage
|
5 V, 12 V, 13,8 V, 15 V, 24 V, 48V
|
|
Efficiency
|
≥ 85%
|
|
Operation temperature range
|
-25...+70 °C
|
|
Casing
|
UL94-V0
|
|
Dimensions (W x L X H)
|
42,0 x 75,0 x 115,0 mm
|
Seria HSAP
Technical data
Power | 120W, 240 W (HSA) / 240 W (HSAP) |
input voltage | 94...264 VAC |
Output voltage | 12 V, 13 - 15 V, 24 V, 36V, 48V |
Efficiency | ≥ 89% |
Operation temperature range | -25...+70 °C |
Efficiency | HSAP: 0,98 (EN 61 00-3-2, lout = lnom) |
Dimensions (W x L X H) | HSA 120 :50,0 x 130,0 x 130,0 mm |
HSA 240: 80,0 x 130,0 x 130,0 mm | |
HSAP 240:120,0 x 130,0 x 130,0 mm |
Seria HMG
Technical data
Power
|
15W, 30W
|
input voltage
|
20...72 VDC
|
Output voltage
|
5 V, 12 V, 13,8 V, 15 V, 24 V, 48V, ±12 V, ±15V, 5/12 V, 5/15 V, 5/24 V, 5/±12, 5/±15V
|
Dokładność
|
bis zu ≥ 80%
|
Operation temperature range
|
-25...+65 °C
|
Casing
|
UL94-V0
|
Dimensions (W x L X H)
|
35,0 x 70,0 x 113,0 mm
|
Seria HSD
Technical data
Power | 60W |
input voltage | 16,8...50,4 VDC / 50,4...154 VDC |
Output voltage | 5,2 V, 12 V, 24V |
Dokładność | bis zu ≥ 85% |
Operation temperature range | -25...+65 °C |
Casing | UL94-V0 |
Dimensions (W x L X H) | 37,0 x 76,0 x 116,0 mm |
U OUT | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
single | double | Triple | |||||||||||||
Seria | 3,3 V | 5V | 12V | 15V | 24 V | 48 V | ±5V | ±12V | ±15V | 5/12 V | 5/15 V | 5/24 V | 5/±12V | 5/±15V | dimension [mm] |
Seria HMA | |||||||||||||||
HMA15 | 3,0 A | 3,0 A | 1,3 A | 1,0A | 0,6 A | 0,3 A | +0,6/ -0,4 A | +0,5/ -0,4 A | +1,0/ -0,4 A | 1,0/ 0,4 A | 1,0/ 0,3 A | 1,6/ ±0,15 A | 1,6/ 0,15 A | 35,0x70,0x113,0 | |
HMA30 | 6,0 A | 6,0 A | 2,5 A | 2,0 A | 1,3 A | 0,6 A | +1,2/ -1,2 A | +1,0/ -1,0 A | 3,0/ 1,2 A | 3,0/ 1,0 A | 3,0/ 0,6 A | 3,0/ ±0,6 A | 3,0/ ±0,5 A | 35,0x70,0x113,0 | |
HMA50 | 7,5 A | 3,3 A | 2,6 A | 2,0 A | 1,0 A | 35,0x70,0x113,0 | |||||||||
Seria HMN | |||||||||||||||
HMN15 | 3,0 A | 1,3 A | 1,0A | 0,6 A | 0,3 A | +0,6/ -0,4 A | +0,5/ -0,4 A | 1,0/ 0,4 A | 1,0/ 0,4 A | 1,0/ 0,3 A | 1,6/ ±0,15 A | 1,6/ ±0,15 A | 35,0x70,0x113,0 | ||
HMN30 | 6,0 A | 2,5 A | 2,0 A | 1,3 A | 0,6 A | +1,2/ -1,0 A | +1,0/ -0,8 A | 3,0/ 1,0 A | 3,0/ 0,8 A | 3,0/ 0,5 A | 3,0/ ±0,5 A | 3,0/ ±0,4 A | 35,0x75,0x115,0 | ||
Seria HSA | |||||||||||||||
HSA30 | 3,5 A | 1,6 A | 1,3 A | 1,3 A | 0,5 A | 29,0x75,0x115,0 | |||||||||
HSA50 | 10,0 A | 4,2 A | 3,3 A | 2,1 A | 1,4 A | 1,0 A | 42,0x75,0x115,0 | ||||||||
HSA75 | 6,3 A | 5,0 A | 3,1 A | +6,0/ -4,0 A | +6,0/ -2,0 A | 42,0x75,0x115,0 | |||||||||
HSA120 | 10,0 A | 8,0 A | 5,0 A | 3,3 A | 2,5 A | 50,0x130,0x130,0 | |||||||||
HSA240 | 17,0 A | 14,0 A | 10,0 A | 6,6 A | 5,0 A | 80,0x130,0x130,0 | |||||||||
HSAP240 | 10,0 A | 120,0x130,0x130,0 | |||||||||||||
Seria HMG | |||||||||||||||
HMG15 | 3,0 A | 1,3 A | 1,0A | 0,6 A | 0,3 A | +0,6/ -0,4 A | +0,5/ -0,4 A | 1,0/ 0,4 A | 1,0/ 0,4 A | 1,0/ 0,3 A | 1,6/ ±0,15 A | 1,6/ ±0,15 A | 35,0x70,0x113,0 | ||
HMG30 | 5,0 A | 2,5 A | 2,0 A | 1,3 A | 0,6 A | ±1,0 A | ±0,8 A | 2,5/ 1,0 A | 2,5/ 0,8 A | 2,5/ 0,5 A | 2,5/ ±0,5 A | 2,5/ ±0,4 A | 35,0x70,0x113,0 | ||
Seria HSD | |||||||||||||||
HSD60 | 5,0 A | 2,5 A | 67,0x76,0x116,0 |
