Manufacturer: Ebmpapst

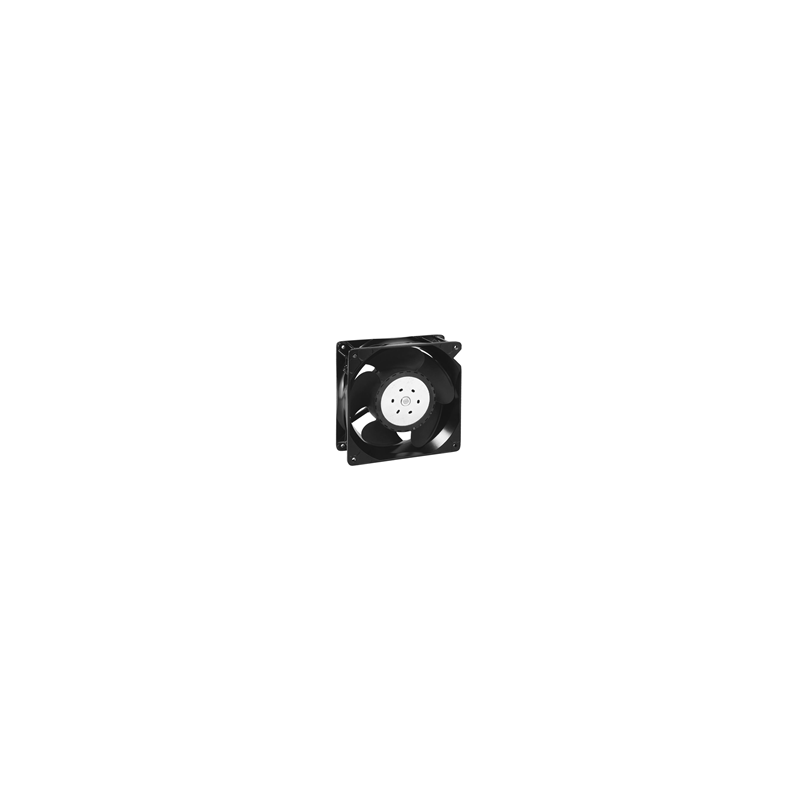

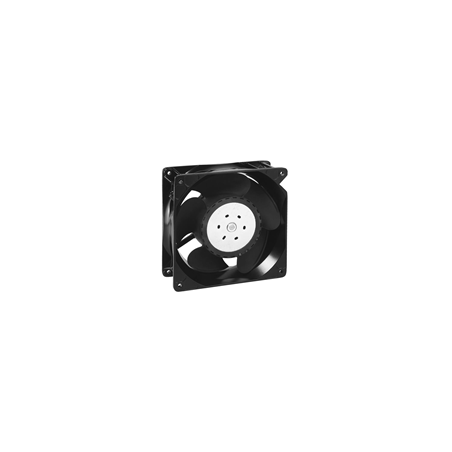

5318 /2 TDHHP DC Axial Fan 48V 66W

  • 53182TDHHP
  • Air flow direction Intake through struts
  • Dimensions 140 x 140 x 51 mm
  • Housing material Die-cast aluminum
  • Input power 66
  • Nominal voltage 48
  • Speed 7000
  • Min. ambient temperature -20
  • Max. ambient temperature 70
  • Air flow 490
  • Fan type DC axial compact
  • Voltage range 36 ... 72
  • Rotor material Glass fiber reinforced PA material
  • Type of voltage DC
  • Weight 0,9 kg
