Manufacturer: ZIEHL

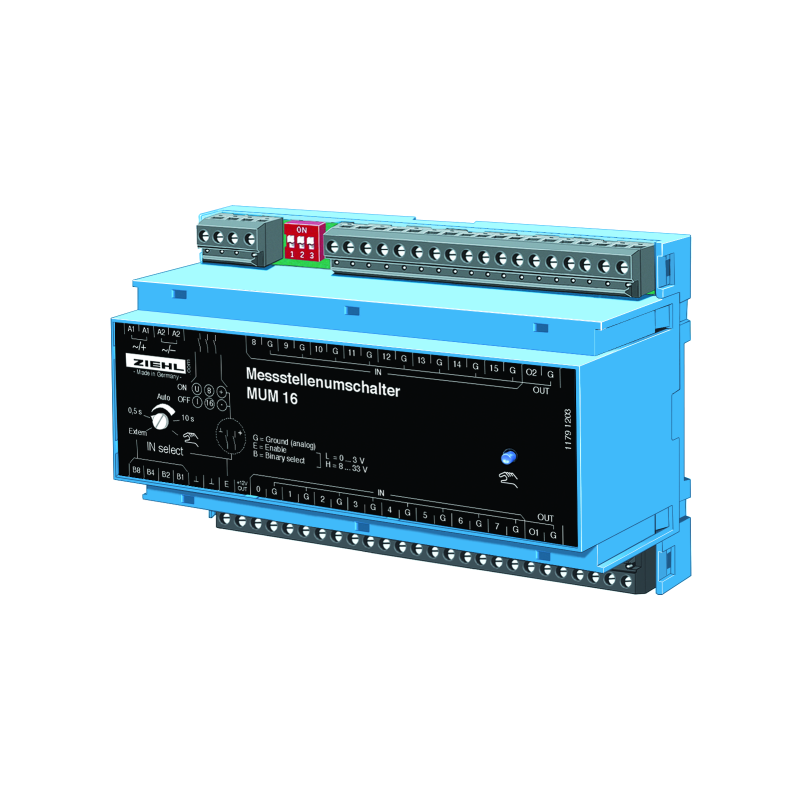

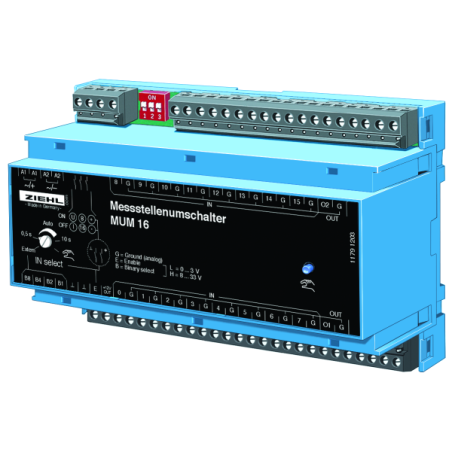

MUM16 - Measuring Point Change-over Switch - T236035

  • T236035
  • Product Type IP54 / depending on mounting and position
  • Additional information Mineral-reinforced PA plastic
  • Execution Motor IP44, electronics IP20 / depending on mounting and position
  • Certificate IP 30 (IP 44, with bracket and cover)
  • Output function Analog outputs 0/4-20 mA, 0-10 V
  • Measured value Wires

Measuring point change-over switches allow the connection of up to 16 measuring points to 1 measuring device, e.g. an analog input of a PLC.

The inputs can be selected with a BCD-Code. Manual selection can be made with a code-switch.

In automatic mode, the inputs are polled (tact-time adjustabe) and thus be displayed in succession. When using a measuring point change-over switch, only 1 measuring input is needed to collect multiple values.
Especially with slowly changing signals like temperatures, measuring every other second is enough. Expensive inputs for Pt100 or 0-10 V/0-20 mA at PLCs can be saved.

With the MUM16, alternatively 16 measuring points with common ground or 8 measuring points with separated ground can be switched.

  • PLC-compatibel. Channelselection over 4 bit parallel (24 V), e.g. PLC or by a code-switch
  • Optional switching + or -
  • Enable-input for using multiple MUM in parallel
  • Monitoring of up to 16 signals for one limit with only 1 limit switch
  • 16 channels (0/4 ... 20 mA, 0... 10V, Pt 100) with common ground
  • 8 double-channels (= Pt 100/ 3-wire and thermocouples)
  • Simple configuration with 3 DIP-switches
  • Supply AC/DC 24-240 V
  • LED-display for selected channel
  • Tact-time in automatic mode adjustable 0.5 ... 10 s
  • plug-in terminals
  • Housing for mounting in switchgear cabinets or fuse boxes, 140 mm wide, mounting height 55 mm
