Manufacturer: Ebmpapst

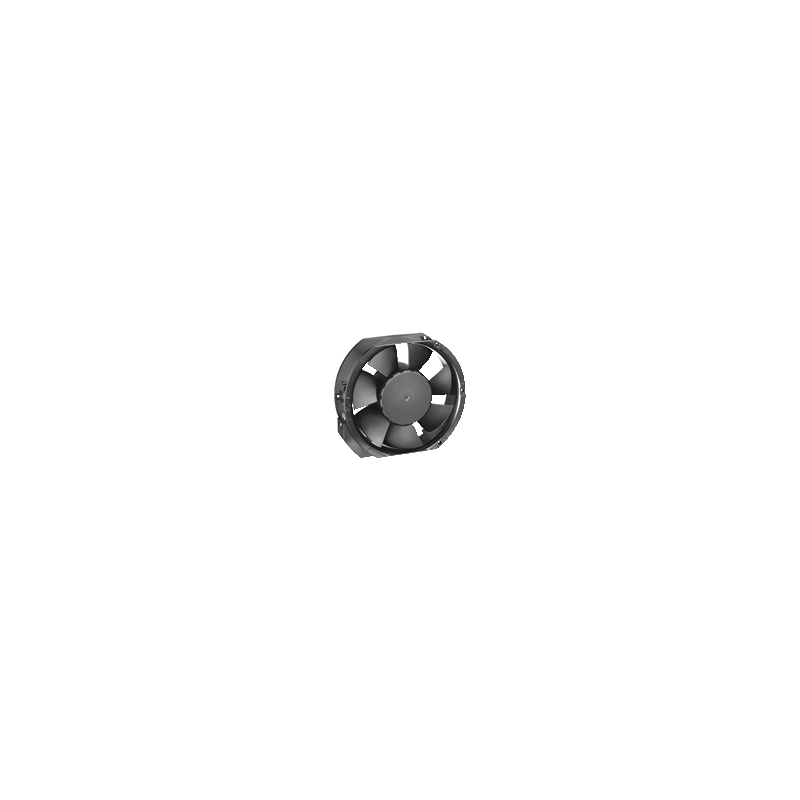

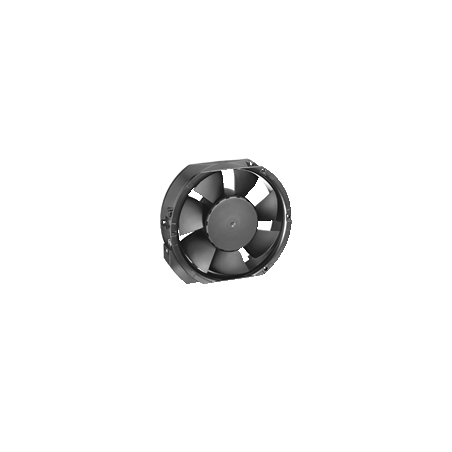

6424 H DC Axial Fan 24V 26W

  • 6424H
  • Air flow direction Exhaust through struts
  • Dimensions 172 x 150 x 51 mm
  • Housing material Die-cast aluminum
  • Input power 26
  • Nominal voltage 24
  • Speed 4000
  • Min. ambient temperature -20
  • Max. ambient temperature 55
  • Air flow 480
  • Fan type DC axial compact
  • Voltage range 12 ... 28
  • Rotor material Glass fiber reinforced PA material
  • Type of voltage DC
  • Locked-rotor protection Electronic locked rotor protection, with electronic motor current limitation during starting and locked rotor conditions.
  • Weight 0,76 kg
