Manufacturer: Ebmpapst

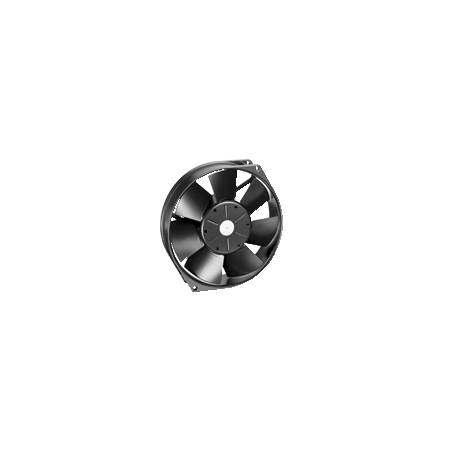

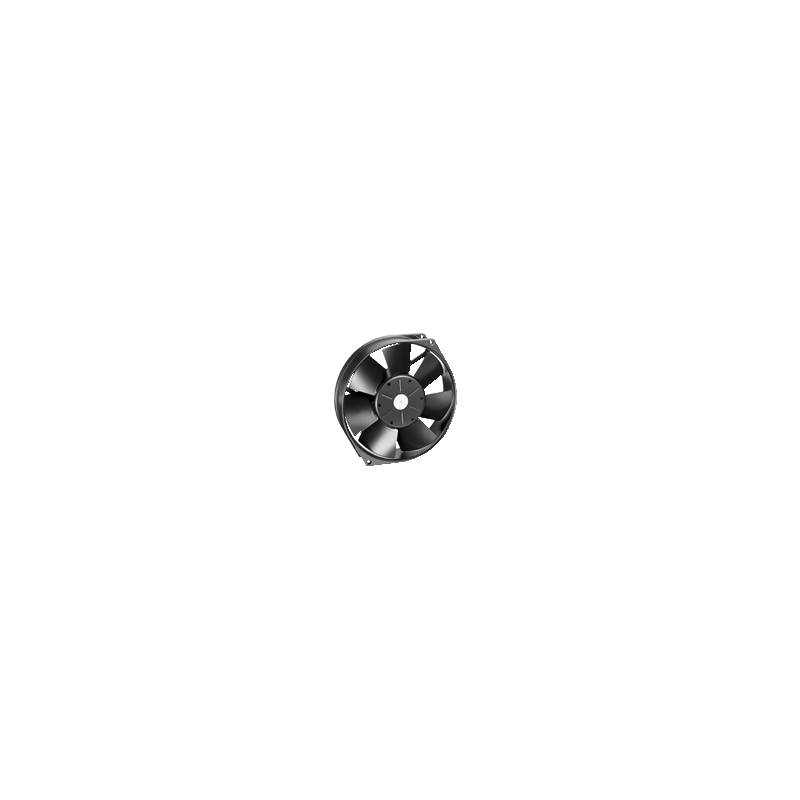

7114 NH DC Axial Fan 24V 19W

  • 7114NH
  • Air flow direction Exhaust through struts
  • Dimensions Ø 150 x 38 mm
  • Housing material Die-cast aluminum
  • Input power 19
  • Nominal voltage 24
  • Speed 3350
  • Min. ambient temperature -25
  • Max. ambient temperature 72
  • Air flow 360
  • Fan type DC axial compact
  • Voltage range 12 ... 26,5
  • Rotor material Black painted steel sheet
  • Type of voltage DC
  • Locked-rotor protection Electronic protection against blocked rotor.
  • Weight 0,62 kg
