Manufacturer: Ebmpapst

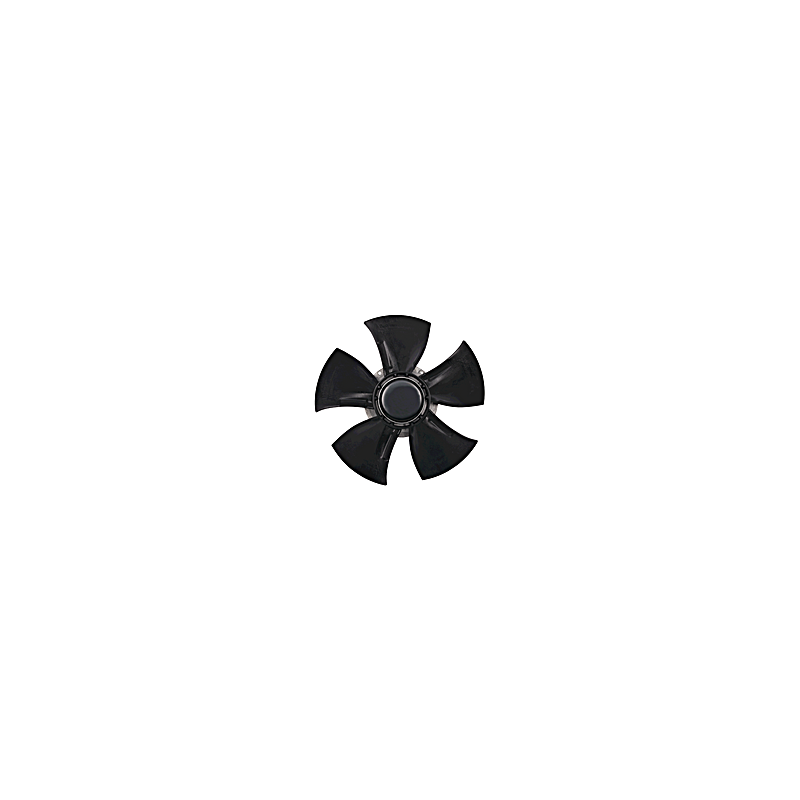

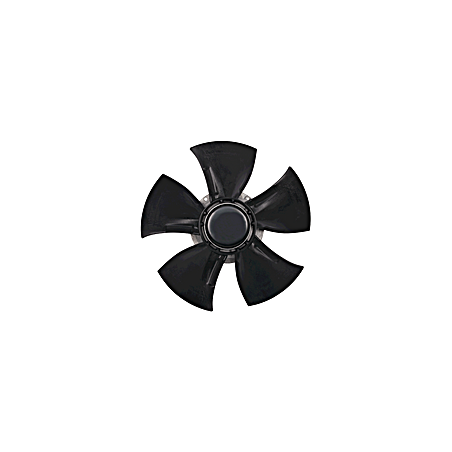

A3G710-AU21-35 EC axial fan 400V 2830W

  • A3G710AU2135
  • Air flow direction A
  • Protection rating IP55
  • Frequency 50/60
  • Input power 2830
  • Phase 3~
  • Nominal voltage 400
  • Speed 1250
  • Current draw 4,3
  • Min. ambient temperature -25
  • Max. ambient temperature 60
  • Certificate UL 1004-7 + 60730-1 / EAC / CSA C22.2 No. 77 + CAN/CSA-E60730-1
  • Size 710 mm
  • Fan type EC axial
  • Voltage range 380 ... 480
  • Rotor material Insert made of aluminum sheet (painted black), sprayed with PP plastic
  • Type of voltage AC
  • Motor protection Reverse polarity and locked rotor protection
  • Motor size 150
  • Insulation class F
  • Protection class against moisture (F) / environment (H) H2+A
  • Motor bearing Ball bearing
  • Maximum back pressure 240
  • Rotor surface Painted black
  • Electronics housing material Die-cast aluminum, painted black
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Weight 25,6 kg
  • Compliance with standards EN 61800-5-1 / CE
