Manufacturer: Ebmpapst

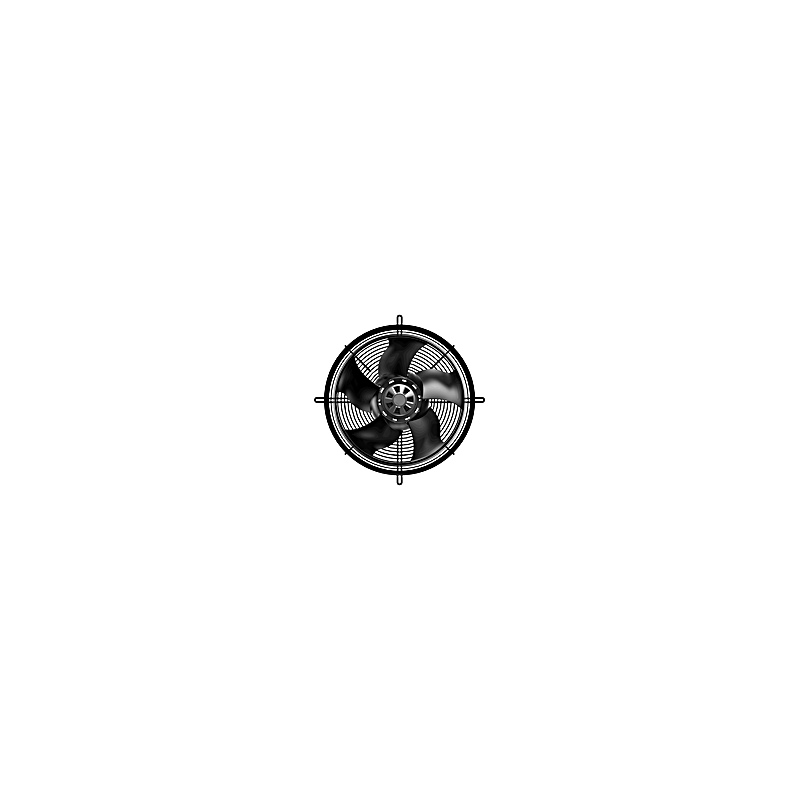

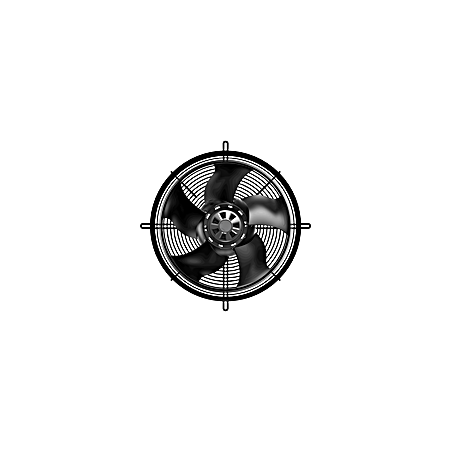

S3G500-ZQ12-90 EC axial fan 400V 1950W

  • S3G500ZQ1290
  • Air flow direction V
  • Protection rating IP55
  • Frequency 50/60
  • Input power 1950
  • Phase 3~
  • Nominal voltage 400
  • Speed 1870
  • Current draw 3
  • Max. ambient temperature 60
  • Certificate EAC / CSA C22.2 No. 77 + CAN/CSA-E60730-1 / UL 1004-7 + 60730-1
  • Size 500 mm
  • Fan type EC axial with protective grille
  • Voltage range 380 ... 480
  • Rotor material PP plastic, galvanized sheet metal
  • Type of voltage AC
  • Motor protection Electronic engine protection
  • Motor size 112
  • Insulation class F
  • Protection class against moisture (F) / environment (H) H2
  • Motor bearing Ball bearing
  • Maximum back pressure 500
  • Rotor surface Painted black
  • Electronics housing material Die-cast aluminum, painted gray
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Weight 19,2 kg
  • Compliance with standards EN 61800-5-1 / CE
