Manufacturer: Ebmpapst

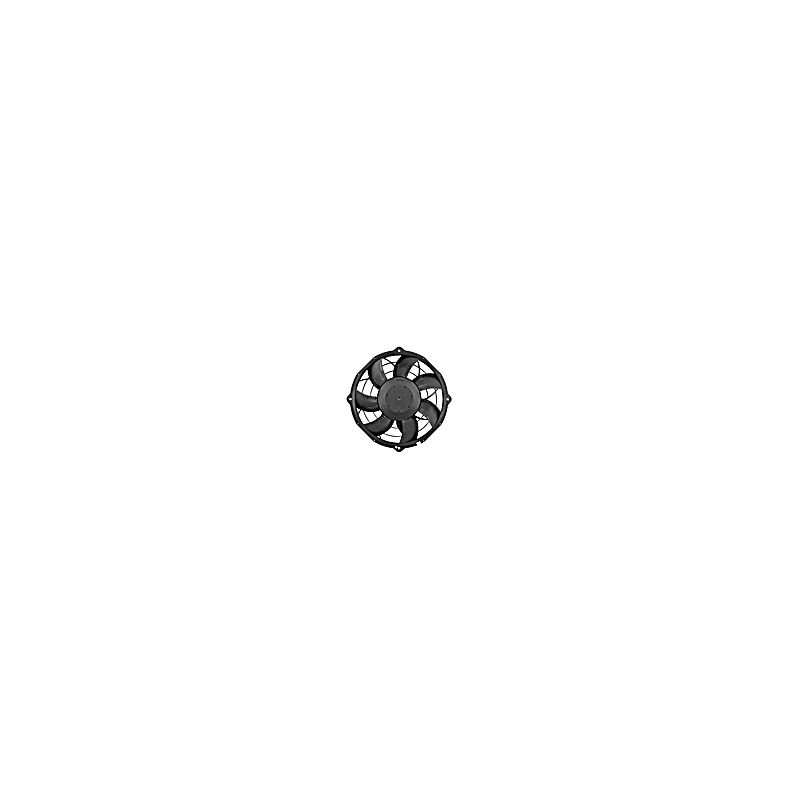

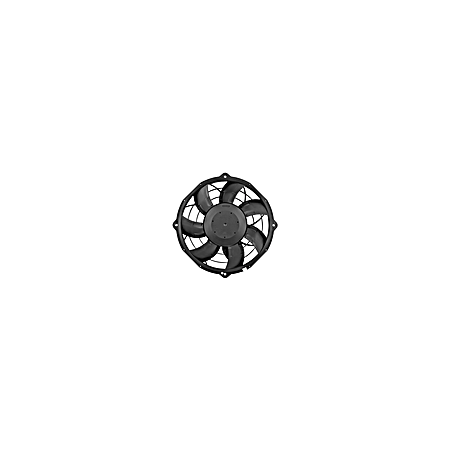

W3G500-CA74-N1 EC axial fan 400V 1000W

  • W3G500CA74N1
  • Air flow direction A
  • Protection rating IP55
  • Frequency 50/60
  • Input power 1000
  • Phase 3~
  • Nominal voltage 400
  • Speed 1600
  • Current draw 1,6
  • Min. ambient temperature -40
  • Max. ambient temperature 60
  • Certificate EAC
  • Size 500 mm
  • Fan type EC axial with wall ring
  • Voltage range 380 ... 480
  • Rotor material PA plastic, black painted sheet metal
  • Type of voltage AC
  • Motor protection Thermal Overload Protection (TOP) connected internally
  • Motor size 112
  • Insulation class F
  • Protection class against moisture (F) / environment (H) H3
  • Motor bearing Ball bearing / (sealed)
  • Maximum back pressure 235
  • Rotor surface Painted black
  • Electronics housing material Die-cast aluminum, painted black
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Fan housing material Steel sheet, galvanized and coated with black plastic (RAL 9005)
  • Weight 15,7 kg
  • Compliance with standards EN 15085-1, CPC3; EN 45545-2, HL3; EN 50155; EN 61373, Cat. 1B
