Manufacturer: Ebmpapst

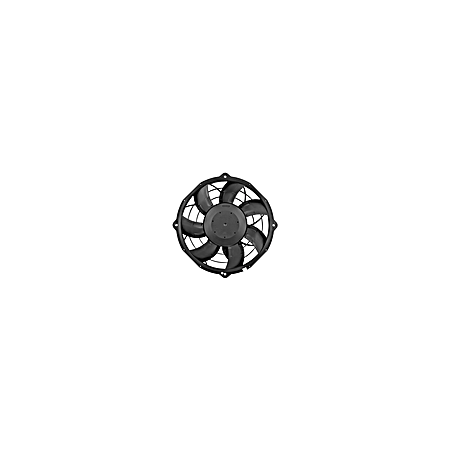

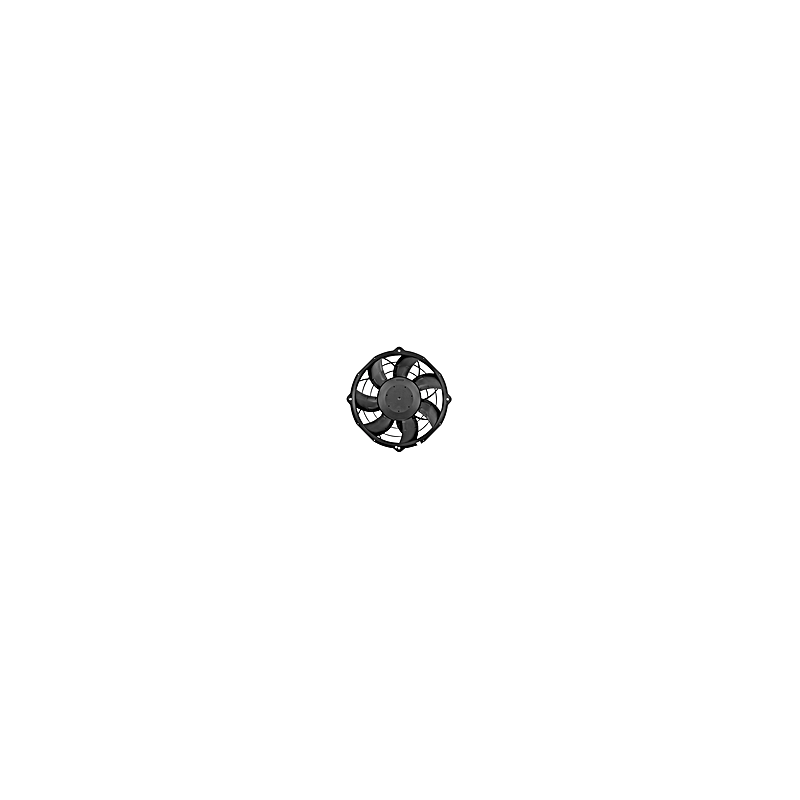

W6D910-CB05-80 AC axial fan 230V 1510W

  • W6D910CB0580
  • Air flow direction A
  • Connection D
  • Protection rating IP55
  • Frequency 50
  • Input power 1510
  • Phase 3~
  • Nominal voltage 230
  • Speed 950
  • Current draw 7,3
  • Min. ambient temperature -40
  • Certificate UL 1004-1 / EAC / CSA C22.2 No. 100
  • Size 910 mm
  • Fan type AC axial with wall ring
  • Rotor material Insert made of aluminum sheet (painted black), sprayed with PP plastic
  • Type of voltage AC
  • Motor protection Automatic reset thermal cutout, lead-out, with basic insulation
  • Motor size 138
  • Insulation class F
  • Protection class against moisture (F) / environment (H) H2+T
  • Motor bearing Ball bearing
  • Maximum back pressure 160
  • Rotor surface Painted black
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Valid for approval / standard CE
  • Fan housing material Steel sheet, galvanized and coated with white aluminum plastic (RAL 9006)
  • Weight 54,1 kg
  • Compliance with standards EN 60034-1 (2010) / UKCA / CE
