Manufacturer: Ebmpapst

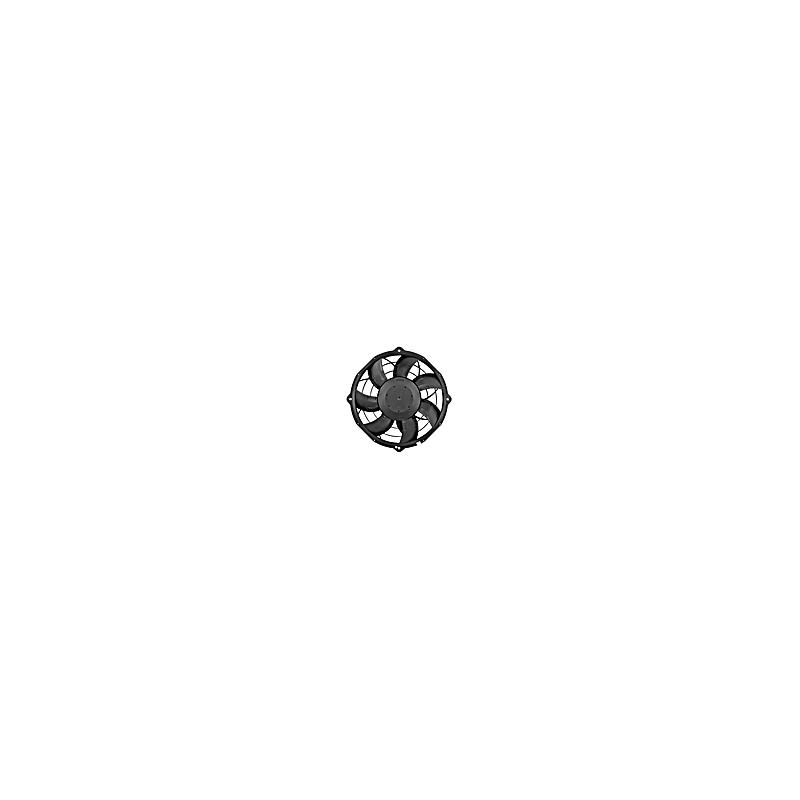

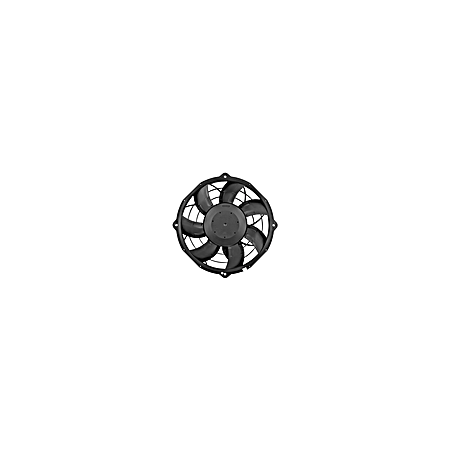

W8D630-KN01-11 AC Axial Fan 400V 305W

  • W8D630KN0111
  • Air flow direction V
  • Connection D
  • Protection rating IP54
  • Frequency 50
  • Input power 305
  • Phase 3~
  • Nominal voltage 400
  • Speed 670
  • Current draw 0,85
  • Min. ambient temperature -40
  • Certificate EAC / VDE
  • Size 630 mm
  • Fan type AC axial with wall ring
  • Rotor material Pressed semi-finished product made of steel sheet, sprayed with PP plastic
  • Type of voltage AC
  • Motor protection Automatic reset thermal cutout, lead-out, with basic insulation
  • Motor size 110
  • Insulation class F
  • Protection class against moisture (F) / environment (H) H2
  • Motor bearing Ball bearing with low-temperature grease
  • Maximum back pressure 70
  • Rotor surface Painted black
  • Max. permitted ambient temp. (transport/storage) 70
  • Min. ambient temp. (transport/storage) -40
  • Valid for approval / standard CE
  • Fan housing material PP plastic
  • Weight 21,24 kg
  • Compliance with standards EN 60034-1; EN 61800-5-1 / CE
