Manufacturer: FANDIS

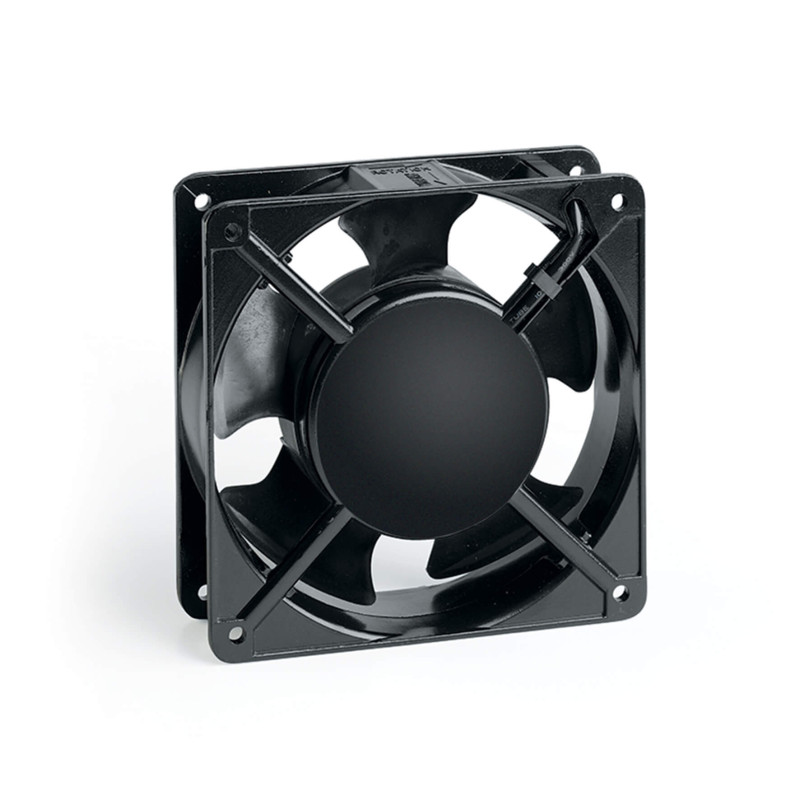

A06G23HWBFF0 AC axial fan 230V 4W

  • A06G23HWBFF0
  • Air flow direction Exhaust through brackets
  • Dimensions 60 x 60 x 30 mm
  • Rated voltage 230
  • Housing material Odlew aluminium
  • Protection rating IP55
  • Frequency 50
  • Input power 5
  • Speed 2400
  • Current draw 0,025
  • Air flow 13
  • Certificate CE; UKCA
  • Mounting method screws
  • Static Pressure 14
  • Noise Level 27
  • Fan type AC axial
  • Voltage range 207-253
  • Type of voltage AC
  • Motor protection Impedance protection
  • Insulation class A
  • Motor bearing Ball bearing
  • Protection class I
  • Electrical hookup Wires
  • Storage temperature -40÷80 °C
  • Working temperature -40÷70 °C
