Manufacturer: FANDIS

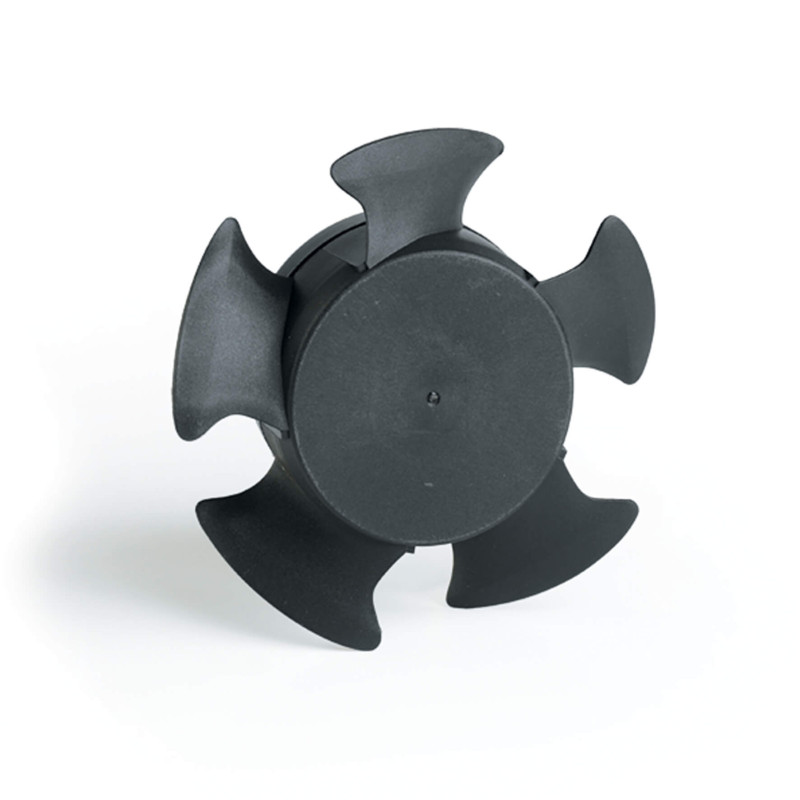

A12Z23HWBW00 AC axial fan 230V 18W

  • A12Z23HWBW00
  • Air flow direction Inlet through brackets
  • Dimensions Ø113 x 38 mm
  • Rated voltage 230
  • Housing material Odlew aluminium
  • Protection rating IP20
  • Frequency 50
  • Input power 18
  • Speed 2550
  • Current draw 0,125
  • Air flow 148
  • Certificate CE; UKCA
  • Mounting method screws
  • Static Pressure 66
  • Noise Level 46
  • Fan type AC axial
  • Voltage range 216-244
  • Type of voltage AC
  • Motor protection Impedance protection
  • Insulation class A
  • Motor bearing Ball bearing
  • Protection class I
  • Electrical hookup Wires
  • Storage temperature -40÷70 °C
  • Working temperature -10÷60 °C
