Manufacturer: FANDIS

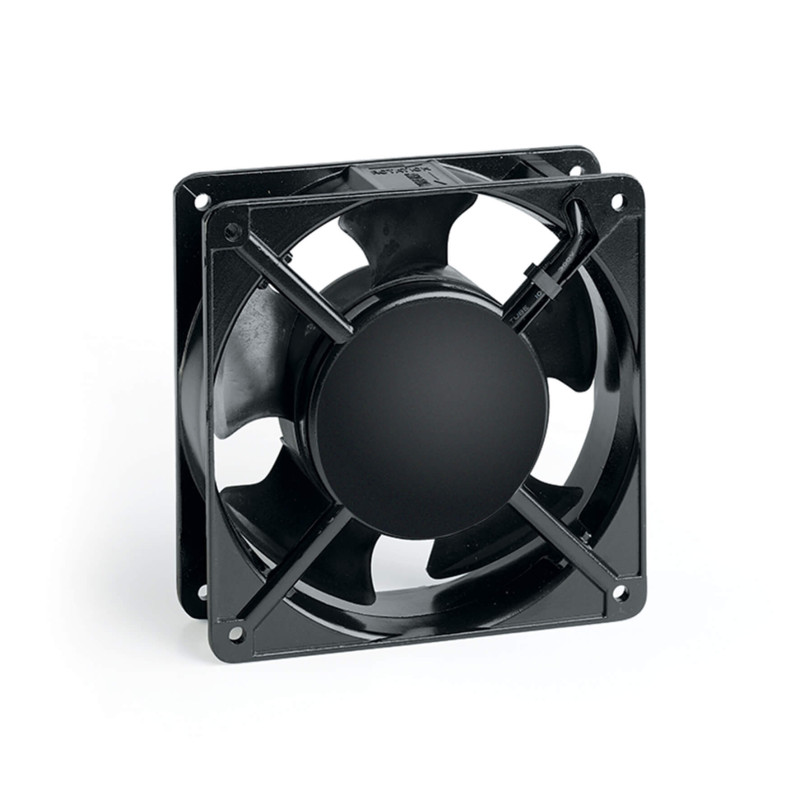

A13B23HTBF00 AC axial fan 230V 15W

  • A13B23HTBF00
  • Air flow direction Exhaust through brackets
  • Dimensions 127 x 127 x 38 mm
  • Rated voltage 230
  • Housing material Odlew aluminium
  • Protection rating IP44
  • Frequency 50
  • Input power 17
  • Speed 2700
  • Current draw 0,1
  • Air flow 180
  • Certificate CE; cURus; UKCA
  • Mounting method screws
  • Static Pressure 80
  • Noise Level 46
  • Fan type AC axial
  • Voltage range 207-253
  • Type of voltage AC
  • Motor protection Impedance protection
  • Insulation class B
  • Motor bearing Ball bearing
  • Protection class I
  • Electrical hookup Fast-On 3x0.5mm
  • Storage temperature -40÷80 °C
  • Working temperature -40÷70 °C
