Manufacturer: Radiall

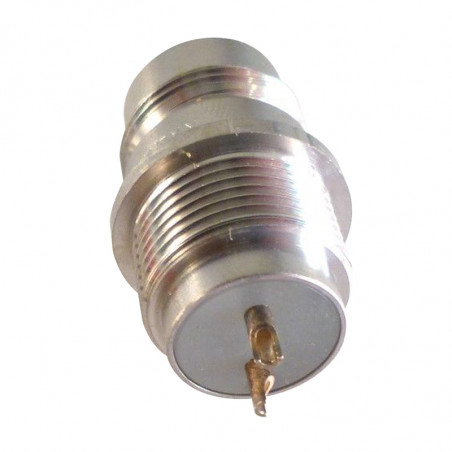

Concentric bipolar connectors

HN2 Bipolar Connectors (TWINAX Series)

Standard coaxial connections with threaded closure. For data transmission where good electrical and mechanical properties are required.

Technical Data:

American Standard:
MIL-C-3655 B
Impedance:
95 Ω
Operating frequency:
0-500MHz
Test voltage:
500Vrms
Operating temperature:
- 50°C to 125°C
Metal parts:
brown, brass
Seals:
silicone
Manufacturer no. Description
HN2 bipolar connectors (TWINAX series) R 606 008 280

R 616 008 280

Cable connector
(IBM No. 7 362 229)
for crimping,
Ø 8.3mm

R 616 008 000 W

Cable connector
 as above,
but soldered leads

HN2 bipolar connectors (TWINAX series) R 616 549 000

R 616 549 000 W

Panel Socket
Through-Hole Mount
(IBM No. 7 362 179)
HN2 Bipolar Connectors (TWINAX Series) R 616 705 000

R 616 705 000 W

Socket-to-socket adapter
(IBM No. 7 362 230)

BR2 two-pole connectors

Connectors with a bayonet lock for two-conductor shielded cables. Cannot be replaced by a mechanical device.

Technical data:

Test voltage:
1500V 50 Hz
Material
Current capacity:
max 3.5 A
Electrical parts:
Beryllium bronze
Contact resistance:
< 1 mΩ at 1A
Metal parts:
Nickel-plated brass
Capacitance at 1 MHz:
Insulation:
polyamide and allyl phthalate
between pins
< 1.3 pF
between pin and ground
< 3.2 pF
Gasket:
neoprene
Temperature range:
- 40°C to 100°C

Manufacturer no. Description

Bipolar connectors BR2 R 605 005 000

R 605 005 000 W

Cable plug
max. 5.5mm Ø
Bipolar connectors BR2 R 605 004 000

R 605 004 000 W

Cable plug
max. 4.5mm Ø

R 605 400 000 W

Cable socket
with square collar
Bipolar connectors BR2 R 606 550 000

R 605 550 000 W

Cable socket
for mounting in a Ø 9.5mm hole
