Manufacturer: DetasUltra

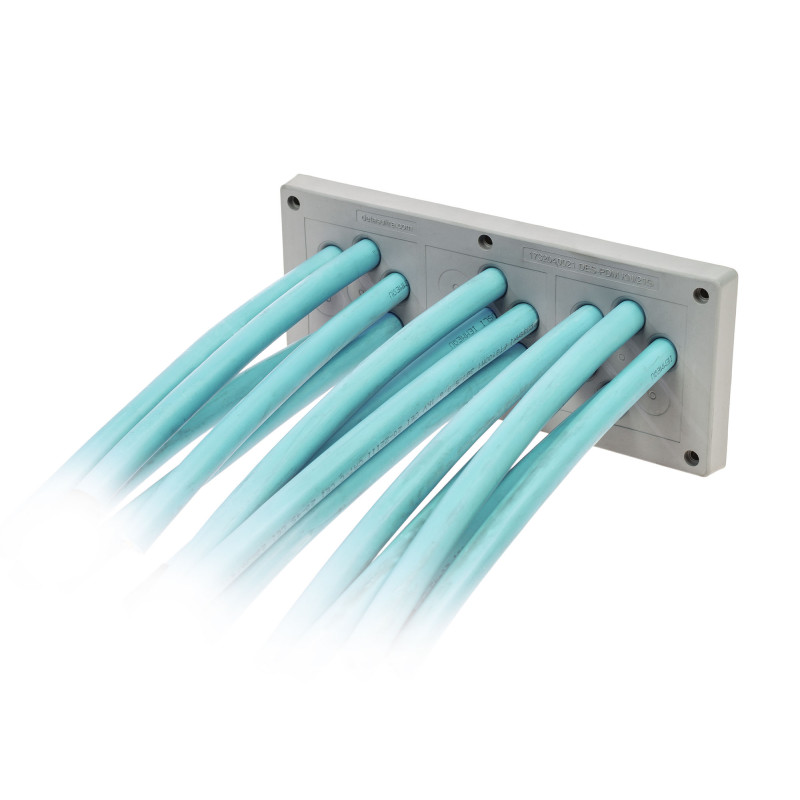

DES PDM KN 72GA - Cable entry plates

  • 1732340072
  • Dimensions 221 x 90
  • Product Type Przepusty kablowe

DES PDM KN cable entry plates are an economical and reliable alternative to standard industrial cable glands.

  • For large number cables without connectors
  • High strain relief thanks to the double membrane
  • Cost efficient solution
  • High water protection (IP65-66)
  • Material: TPE + PA
  • Flammability: UL94-V0, self-extinguishing
  • Temperature: -40°C... +110°C (static)
  • Properties:halogen-free, silicone-free
Model Code Dimensions [mm] Cut-out Dimensions [mm] No. cables - Ø cables [mm]
DES PDM KN 19G 1732040019 192 x 62 221 x 90 4 - 3 / 6
3 - 5 / 10
1 - 9 / 15
6 - 14 / 22
3 - 19 / 27
2 - 22-30
DES PDM KN 21G 1732040021 192 x 62 221 x 90 21 - 9,5 / 17
DES PDM KN 72G 1732040072 192 x 62 221 x 90 42 - 2,8 / 6,5
21 - 4,6 / 10,2
6 - 8,6 / 16,2
3 - 14,5 / 22
DES PDM KN 19B 1732041020 192 x 62 221 x 90 4 - 3 / 6
3 - 5 / 10
1 - 9 / 15
6 - 14 / 22
3 - 19 / 27
2 - 22-30
DES PDM KN 21B 1732041021 192 x 62 221 x 90 21 - 9,5 / 17
DES PDM KN 72B 1732041073 192 x 62 221 x 90 42 - 2,8 / 6,5
21 - 4,6 / 10,2
6 - 8,6 / 16,2
3 - 14,5 / 22
DES PDM KN 19GA 1732340019 192 x 62 221 x 90 4 - 3 / 6
3 - 5 / 10
1 - 9 / 15
6 - 14 / 22
3 - 19 / 27
2 - 22-30
DES PDM KN 21GA 1732340021 192 x 62 221 x 90 21 - 9,5 / 17
DES PDM KN 72GA 1732340072 192 x 62 221 x 90 42 - 2,8 / 6,5
21 - 4,6 / 10,2
6 - 8,6 / 16,2
3 - 14,5 / 22
DES PDM KN 19BA 1732341020 192 x 62 221 x 90 4 - 3 / 6
3 - 5 / 10
1 - 9 / 15
6 - 14 / 22
3 - 19 / 27
2 - 22-30
DES PDM KN21BA 1732341021
DES PDM KN 72BA 1732341073 192 x 62 221 x 90 42 - 2,8 / 6,5
21 - 4,6 / 10,2
6 - 8,6 / 16,2
3 - 14,5 / 22
