Manufacturer: DetasUltra

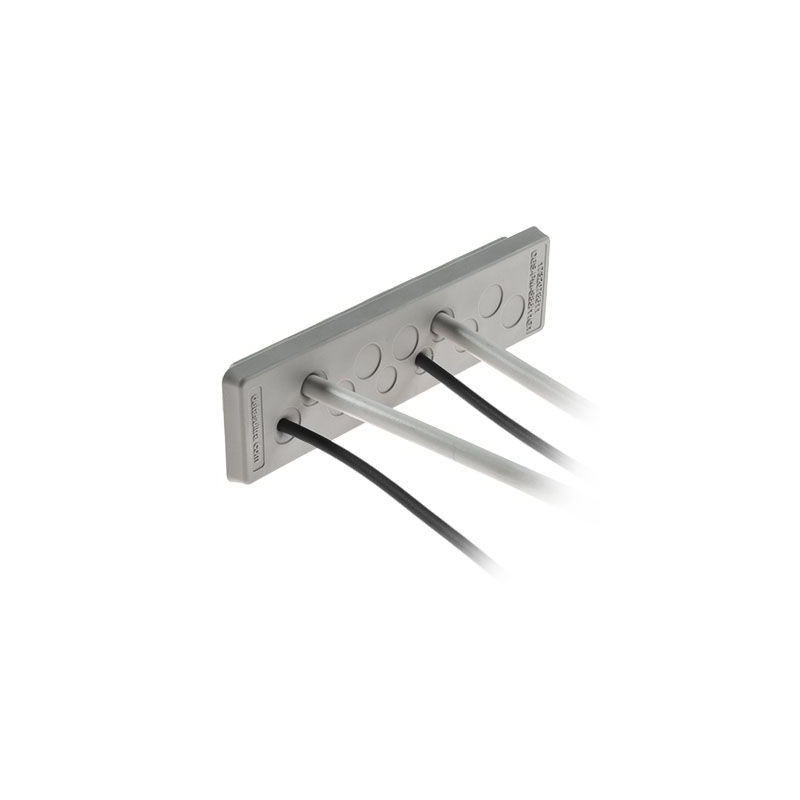

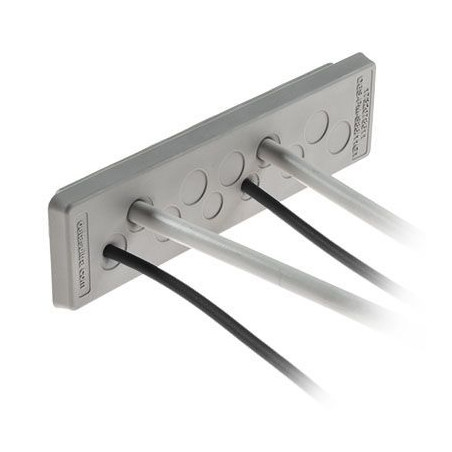

DES PM S86/11B - Cable entry plates

  • 1732078612
  • Dimensions 103 x 28
  • Product Type Przepusty kablowe
  • Number of wires 2 - max. 6,5 ; 9 - max. 8,35 ∅

DES PM S cable entry plates are an economical and reliable alternative to standard industrial cable glands.

  • For large number cables without connectors
  • High strain relief thanks to the double membrane
  • Cost efficient solution
  • High water protection (IP65-66)
  • NEMA 4X certified*

*4X for indoor use only

  • Material: TPE
  • Flammability: UL94-V0, self-extinguishing
  • Temperature: -40°C... +110°C (static)
  • Properties:halogen-free, silicone-free
  • Wall thickness: 1.5 to 2.5 mm
Model Code Dimensions [mm] Cut-out A1xA2 Dimensions [mm] L1xL2 No. cables - Ø cables [mm]
DES PM S112/21G 1732071221 112 x 18 max. +0,5 130 x 28 16 - max. 6,5
4 - max. 8,3
1 - max. 12,1
DES PM S112/21B 1732071222 112 x 18 max. +0,5 130 x 28 16 - max. 6,5
4 - max. 8,3
1 - max. 12,1
DES PM S46/7G 1732074607 46 x 18 max. +0,5 64 x 28 2 - max. 6,5
5 - max. 8,3
DES PM S46/7B 1732074608 46 x 18 max. +0,5 64 x 28 2 - max. 6,5
5 - max. 8,3
DES PM S46/9G 1732074609 46 x 18 max. +0,5 64 x 28 8 - max. 6,5
1 - max. 12,1
DES PM S46/9B 1732074610 46 x 18 max. +0,5 64 x 28 8 - max. 6,5
1 - max. 12,1
DES PM S69/8G 1732076908 69 x 10 max. +0,5 86 x 20 8 - max. 7,5
DES PM S69/8B 1732076909 69 x 10 max. +0,5 86 x 20 8 - max. 7,5
DES PM S86/11G 1732078611 85 x 18 max. +0,5 103 x 28 2 - max. 6,5
9 - max. 8,35
DES PM S86/11B 1732078612 85 x 18 max. +0,5 103 x 28 2 - max. 6,5
9 - max. 8,35
DES PM S86/17G 1732078617 85 x 18 max. +0,5 103 x 28 16 - max. 6,5
1 - max. 12,1
DES PM S86/17B 1732078618 85 x 18 max. +0,5 103 x 28 16 - max. 6,5
1 - max. 12,1
DES PM S46/7B V2 1739080010
DES PM S69/8B V2 1739080020
