Manufacturer: DetasUltra

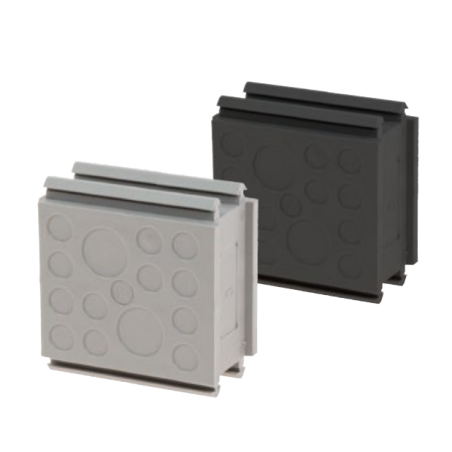

SPG M4B - Grommets

  • 1731022402
  • Product Type Moduły uszczelniające
  • Number of wires 3 - 16 ∅

SPG M seriescable grommets allow a large number of cables without connectors to be routed inside DES series splittable frames.

  • Pierceable blind multi-grommets for cables without connectors
  • For large number cables without connectors
  • Colours grey and black
  • UL94-V0 for both colours
  • Material: TPE
  • Flammability: self-extinguishing according to UL94-V0 (grey or black)
  • Temperature: -40°C... +110°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code No. cables - Ø cables [mm]
SPG M2G 1731022302 2 - 18
SPG M3G 1731022303 3 - 16
SPG M4G 1731022304 4 - 14
SPG M7G 1731022307 4 - 13,5
2 - 5
1 - 9,5
SPG M9G 1731022309 9 - 8,8
SPG M14G 1731022314 12 - 6,5
2 - 12
SPG M15G 1731022315 15 - 7,0
SPG M2B 1731022402 2 - 18
SPG M4B 1731022402 3 - 16
SPG M3B 1731022403 4 - 14
SPG M7B 1731022407 4 - 13,5
2 - 5
1 - 9,5
SPG M9B 1731022409 9 - 8,8
SPG M14B 1731022414 12 - 6,5
2 - 12
SPG M15B 1731022415 15 - 7,0
