Manufacturer: DetasUltra

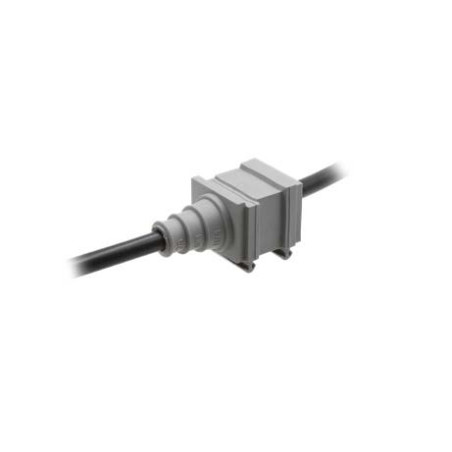

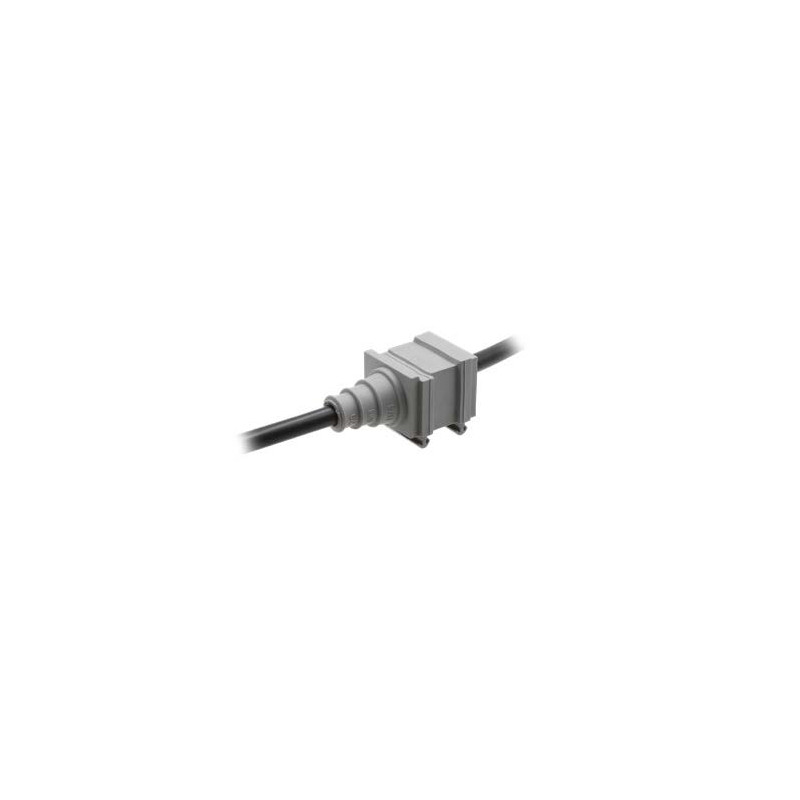

SPP PB - Grommets

  • 1731020652
  • Product Type Sealing modules
  • 3 ~ 14

SPP P series grommets are suitable for use with cables without connectors.

  • Universal solution for cables without connectors with diameter from 2 to 14 mm
  • Can be used in all DES series frames.
  • IP66
  • UL94-V0 for both colours
  • Material: TPE
  • Flammability: self-extinguishing according to UL94-V0 (grey or black)
  • Temperature: -40°C... +110°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Cable Ø max. [mm]
SPP PG 1731020650 3 ~ 14
SPP PGT 1731020651 3 ~ 14
SPP PB 1731020652 3 ~ 14
SPP PBT 1731020653 3 ~ 14
