Ceramic power capacitors for W.cz.
Ceramic power capacitors for W.cz.
Ceramic power capacitors for W.cz.
Ceramic power capacitors for W.cz.
Ceramic power capacitors for W.cz.

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Vishay

Ceramic power capacitors for W.cz.


Marking Capacity
[PF]		 Tolerance
[%]		 Voltage
[kVp]		 Power
[kVR]		 Current
[AR]
PS 20 5.6-270 ±5,±10,±20 5.0 5.0-10 5
PS30(Class1) 10-560 ±5,±10,±20 5.0-7.5 8.0-30 10
PS4CT 22-1000 ±5,±10,±20 5.0 20-gru 15
PS 55 22-2000 ±5,±10,±20 5.0 15-55 18
PS 20 1000-1500 20 3.5 0.25 5 max.
PS 30(Class 2) 2200-3300 20 3.5 0.5 10 max.
PS 40 4700-6800 20 3.5 1.0 15 max.
PS 55 10000-22000 20 3.5-4.0 1.0 18 max.

CYLINDRICAL
Marking Capacity
[PF]		 Tolerance
[%]		 Voltage
[kVp]		 Power
[kVR]		 Current
[AR]
TOF 016010 1.5-50 ±5,±10,±20 5.0 3.0-4.0 3.0-5.0
TOS 016010 1.5-50 ±5,±10,±20 5.0 3.0-4.0 3.0-5.0
TOF 025016 2.0-100 ±5,±10,±20 9.0 5.0-10 5.0-10
TOS 025016 2.0-100 ±5,±10,±20 9.0 5.0-10 5.0-10
TOS 020016 10-2500 ±10+20 7.5KVDC - -
TOS 030033 10-1500 ±10+20 15KVDC - -
TOSZ 114096 1000 ±20 40 40 30


PASS

Marking Capacity
[PF]		 Tolerance
[%]		 Voltage
[kVp]		 Power
[kVR]		 Current
[AR]
DBZ34 1000 30 10 - 6,0 max
DBZ012058 200 10 7.5 5.0 4.0
DGZ 020036 1000 ±20 5.0 5.0 5.0
D. 016... 200-2500 ±5,±10,±20 3.0-4.0 4.0-7.5 5.0
D. 030... 100-2500 ±5,±K),±20 7.0-12 16-80 8.0-30
D. 045... 400-4700 ±5,±10,±20 8.0-16 25-60 10-50
DB050... 1500-3000 ±10+20 15-20 70-200 50-75
DBF 0501 80 1000-2000 ±10+20 30 70 87
DS055100 1000 ±5,±10,±20 12 60 30


WATER COOLED

Marking Capacity
[PF]		 Tolerance
[%]		 Voltage
[kVp]		 Power
[kVR]		 Current
[AR]
TWXFZ 106266 4000 ±10 20 3540 250
TWXFZ 106266 5000 ±10 16 2830 250
TWXFZ 140316 7500 ±10 22,5 4000 350
TWXFZ 140266 10000 ±10 14 3000 350
TWXFZ 1 40376 10000 ±10 20 4000 350


WATER COOLED

Marking Capacity
[PF]		 Tolerance
[%]		 Voltage
[kVp]		 Power
[kVR]		 Current
[AR]
TWX(F) 095162 100-2500 ±20 14 1000-1500 150
TWX(F)095187 1000 ±20 14 1500 150
TWXF 135242 2500 ±20 25 2500 250
TWX(F) 135242 3000 ±20 20 2000 200
TWXF 135218 4000 ±20 16 2500 250
TWX(F) 095220 5000 ±20 12 1270 150
TWX(F) 110250 4700-5000 ±20 14 2000 200
TWXF 135250 5000 ±20 16 2830 250
TWXF 135285 5000 ±20 20 3000 250
TWXF 135373 5000 ±20 25 3200 250
TWXF 135272 6000 ±20 16 2830 250
TWXF 165278 6000 ±20 20 3000 270
TWXF 165270 7500 ±20 14 3000 300
TWXF 125300 7600 ±20 14 2500 250
TWXF 165270 7600 ±20 16 2830 250
TWXF 125420 7600 ±20 18 2500 250
TWXF 165336 7600 ±20 20 3200 270
TWXF 165336 7500 ±20 22,5 4000 350
TWXF 125300 7500 ±20 10 2000 280
TWXF 125405 10000 ±20 14 2800 290
TWXF 165335 10000 ±20 16 3395 300
TWXF 165420 10000 ±20 18 2500 250
Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in


Marking Capacity
[PF]		 Tolerance
[%]		 Voltage
[kVp]		 Power
[kVR]		 Current
[AR]
PS 20 5.6-270 ±5,±10,±20 5.0 5.0-10 5
PS30(Class1) 10-560 ±5,±10,±20 5.0-7.5 8.0-30 10
PS4CT 22-1000 ±5,±10,±20 5.0 20-gru 15
PS 55 22-2000 ±5,±10,±20 5.0 15-55 18
PS 20 1000-1500 20 3.5 0.25 5 max.
PS 30(Class 2) 2200-3300 20 3.5 0.5 10 max.
PS 40 4700-6800 20 3.5 1.0 15 max.
PS 55 10000-22000 20 3.5-4.0 1.0 18 max.

CYLINDRICAL
Marking Capacity
[PF]		 Tolerance
[%]		 Voltage
[kVp]		 Power
[kVR]		 Current
[AR]
TOF 016010 1.5-50 ±5,±10,±20 5.0 3.0-4.0 3.0-5.0
TOS 016010 1.5-50 ±5,±10,±20 5.0 3.0-4.0 3.0-5.0
TOF 025016 2.0-100 ±5,±10,±20 9.0 5.0-10 5.0-10
TOS 025016 2.0-100 ±5,±10,±20 9.0 5.0-10 5.0-10
TOS 020016 10-2500 ±10+20 7.5KVDC - -
TOS 030033 10-1500 ±10+20 15KVDC - -
TOSZ 114096 1000 ±20 40 40 30


PASS

Marking Capacity
[PF]		 Tolerance
[%]		 Voltage
[kVp]		 Power
[kVR]		 Current
[AR]
DBZ34 1000 30 10 - 6,0 max
DBZ012058 200 10 7.5 5.0 4.0
DGZ 020036 1000 ±20 5.0 5.0 5.0
D. 016... 200-2500 ±5,±10,±20 3.0-4.0 4.0-7.5 5.0
D. 030... 100-2500 ±5,±K),±20 7.0-12 16-80 8.0-30
D. 045... 400-4700 ±5,±10,±20 8.0-16 25-60 10-50
DB050... 1500-3000 ±10+20 15-20 70-200 50-75
DBF 0501 80 1000-2000 ±10+20 30 70 87
DS055100 1000 ±5,±10,±20 12 60 30


WATER COOLED

Marking Capacity
[PF]		 Tolerance
[%]		 Voltage
[kVp]		 Power
[kVR]		 Current
[AR]
TWXFZ 106266 4000 ±10 20 3540 250
TWXFZ 106266 5000 ±10 16 2830 250
TWXFZ 140316 7500 ±10 22,5 4000 350
TWXFZ 140266 10000 ±10 14 3000 350
TWXFZ 1 40376 10000 ±10 20 4000 350


WATER COOLED

Marking Capacity
[PF]		 Tolerance
[%]		 Voltage
[kVp]		 Power
[kVR]		 Current
[AR]
TWX(F) 095162 100-2500 ±20 14 1000-1500 150
TWX(F)095187 1000 ±20 14 1500 150
TWXF 135242 2500 ±20 25 2500 250
TWX(F) 135242 3000 ±20 20 2000 200
TWXF 135218 4000 ±20 16 2500 250
TWX(F) 095220 5000 ±20 12 1270 150
TWX(F) 110250 4700-5000 ±20 14 2000 200
TWXF 135250 5000 ±20 16 2830 250
TWXF 135285 5000 ±20 20 3000 250
TWXF 135373 5000 ±20 25 3200 250
TWXF 135272 6000 ±20 16 2830 250
TWXF 165278 6000 ±20 20 3000 270
TWXF 165270 7500 ±20 14 3000 300
TWXF 125300 7600 ±20 14 2500 250
TWXF 165270 7600 ±20 16 2830 250
TWXF 125420 7600 ±20 18 2500 250
TWXF 165336 7600 ±20 20 3200 270
TWXF 165336 7500 ±20 22,5 4000 350
TWXF 125300 7500 ±20 10 2000 280
TWXF 125405 10000 ±20 14 2800 290
TWXF 165335 10000 ±20 16 3395 300
TWXF 165420 10000 ±20 18 2500 250
Less
Read more

Related articles

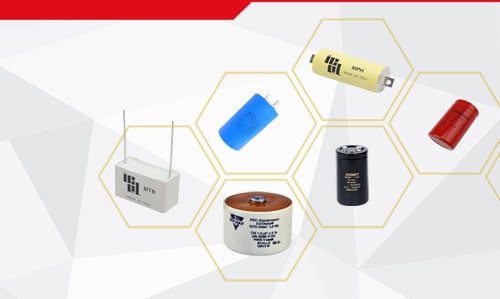

Kondensatory, budowa i zasada działania Kondensatory, budowa i zasada działania
