Manufacturer: SALTEK

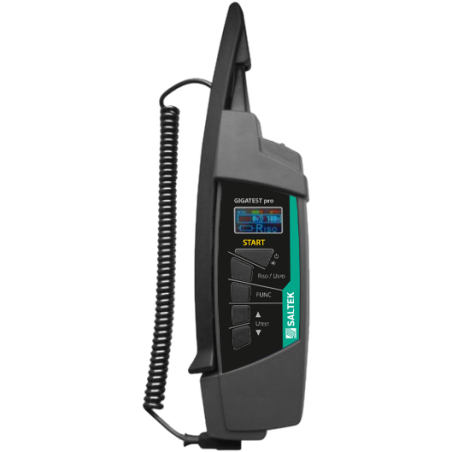

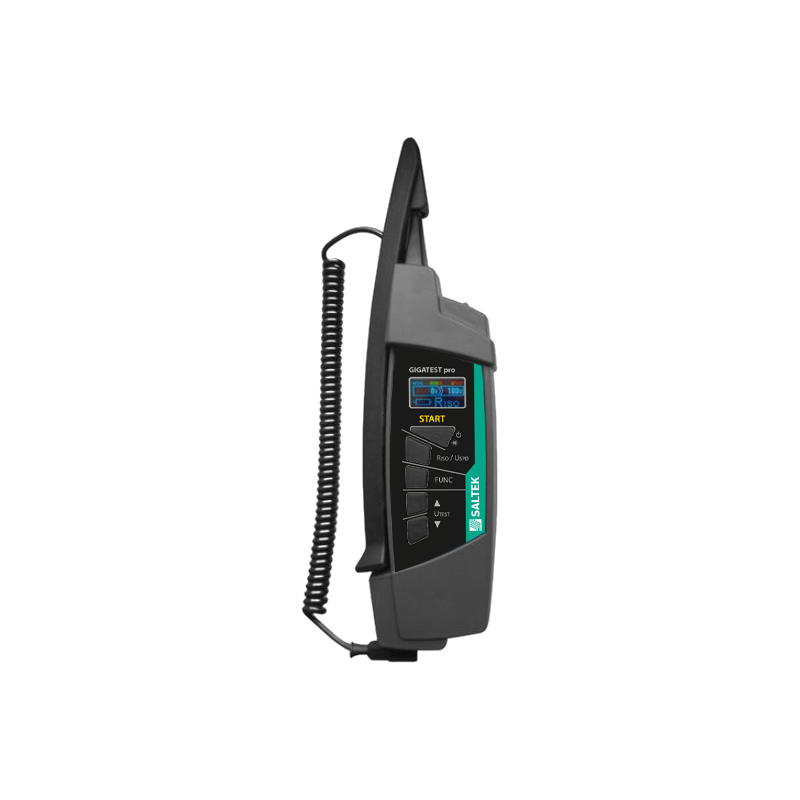

GIGATESTpro-SALTEK - Diagnostic device

  • GIGATESTpro-SALTEK
Parameter name Parameter value
Power supply 4× AAA alkaline battery 1.5 V or NiMH accumulator 1.2 V
Measuring range (test of SPDs) 40 V ÷ 1 050 V
Resolution (test of SPDs) 1 V
Reference error (test of SPDs) ± (2 % z R + 2 D)*
Measuring principle (test of SPDs) Increasing DC voltage and simultaneously measures the 1 mA current through the SPD
Measuring range (insulation resistance) 0.100 MΩ ÷ 9.999 GΩ (U = 50 V ÷ 1,000 V)
Nominal test current max (insulation resistance) 1 mA
Automatic discharge of tested object (insulation resistance) yes
Measuring range (voltage TRMS) 0 V ÷ 600 V DC / AC (45 Hz ÷ 65 Hz)
Resolution (voltage TRMS) 1 V
Reference error (voltage TRMS) ± (2 % z R + 2 D)*
Overvoltage category CAT III / 300 V or CAT II / 600 V
Display High contrast bright multicolour graphic OLED
Dimensions 260 x 70 x 40 mm
Weight (including batteries and measuring tip) 0.36 kg
ETIM Class EC002495
Remark * R = reading, D = digit
Customs tariff number 90303100
EAN 8595090500100
