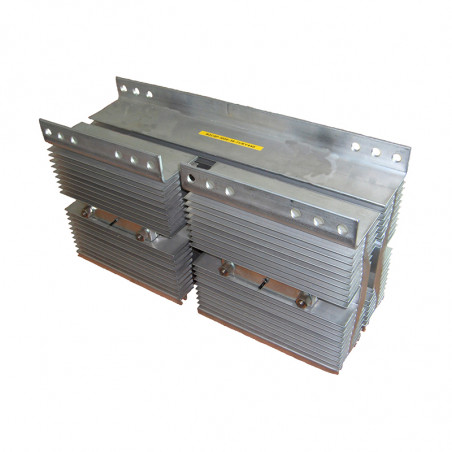

Diode - Thyristor module - M1C..P

Diode - Thyristor module - M1C..P
One element power diode-thyrisor block with radiator RY.RY.

Properties:

• Two element power diode-thyristor block with both side cooling– RY
• Natural cooling

Typical applications:
• rectifiers, converters, supplies.
• DC power regulators
• power contactors
• soft-starts

Options:
• Standard – Diagram. 1
• Execution with current busses
• With blacken radiator
• Thermal protection
• RC circuit
• fuse
• forced cooling

Power block selection:
• There are different semiconductors used, depending on the load. Used semiconductor size is given in the Table 1.
Drawing 1
Scheme


Operation conditions:
One element power blocks are used in power electronic systems.
• Ambient air temperature -100 C - +400 C;
• Atmospheric pressure  860hPa - 1060hPa
• Humidity less then 80% @ temperature 40 C
• Cooling air without aggressive factors. .



Table 1 Power blocks parameters


Module typeMean current IF(AV) [A]Blocking voltage  U RRM
    [V]
Overcurrent
I FSM
[A]
Semiconductor size
[mm]
Block Weight
[kg]

M1C7P

450…650 400…2400 7000…10000 6,9

M1C8P

630…1000 400…8500 10000…24000 6,9

M1C9P

1000…2000 400…7500 20000…42000 16,4

M1C11P

1000…3200 400…6000 27000…65000 18,3


Power block scheme M1C...P
