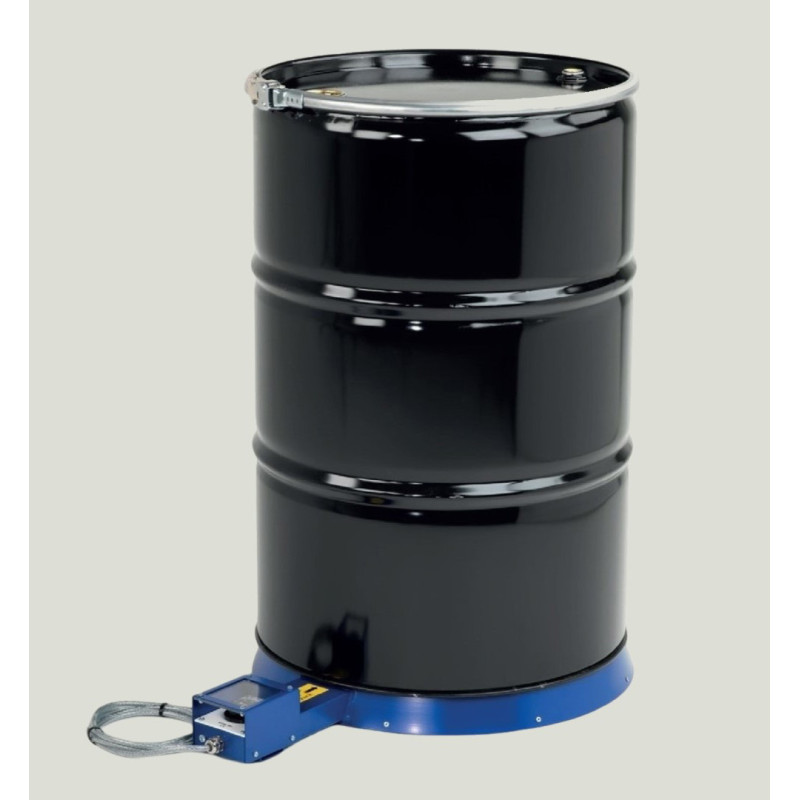

HBD Alper-013 Basic Barrel Heater

The HBD base model drum heater for metal drums with a maximum capacity of 200L is ideal for reducing the viscosity of materials such as soap, grease, resins, and paints that need to be easily pumped or vacuumed. CONTACT US to request a price list.

Construction

Constructed from two layers of 2mm thick mild steel for increased rigidity on uneven surfaces, with tapered edges for safe and easy drum placement. It is protected by a durable, high-temperature-resistant coating.

Heating is provided by a flat 900W silicone heating element, characterized by perfect heat distribution across the entire surface.

Insulated with 50mm high-density mineral wool, it guarantees high-efficiency heat transfer to the base of the heated barrel.

Technical Specifications The base barrel heater is designed for durability and performance, with a robust metal construction that ensures long-lasting operation. It features an adjustable thermostat for precise temperature control from 0°C to 150°C, suitable for a variety of heating needs. With an IP40 insulation rating, the heater provides reliable protection in industrial environments. The standard dimensions are designed to fit 200L drums, making it ideal for standard storage needs. The heater is equipped with an armored power cable for increased safety and durability. Moreover, it is easy to install, ensuring quick start-up and ease of use.

Technical Specifications

• Power supply voltage: 110V or 230V
• Power consumption: 900W
• Temperature control range: 20-150°C
• Base dimensions: 600mm
• Heating surface diameter: 550mm
• Height: 70mm
• Control unit height: 105mm (arm: 280mm)
