Manufacturer: EMC Prima

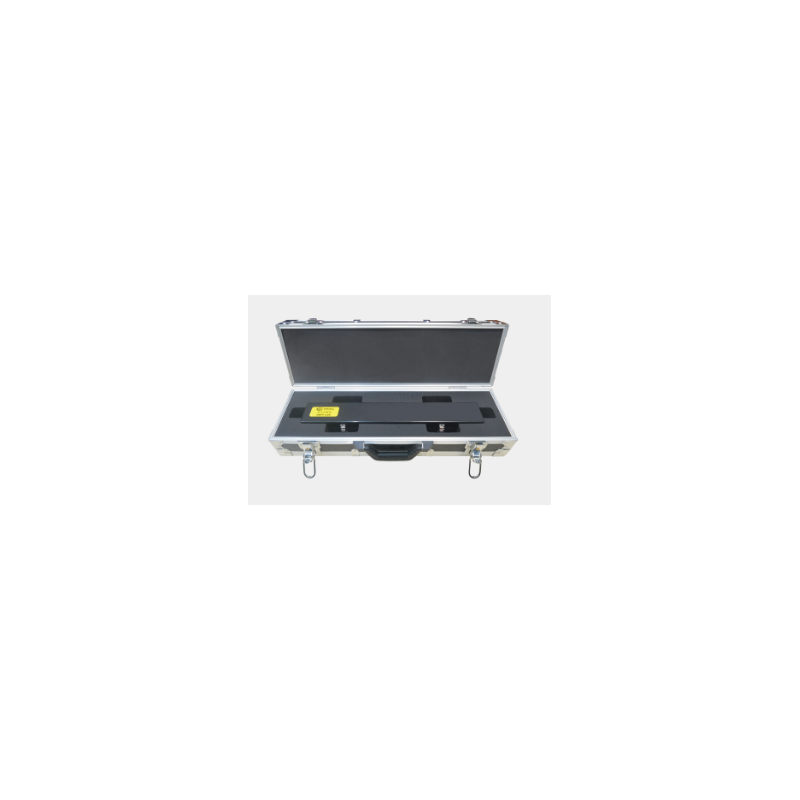

EFT Decoupling Clamp PEFT-L45

  • PEFT-L45

The PEFT-L45 decoupling clamp is used to eliminate interfering signals during fast transient pulse group immunity tests (in accordance with GB/T 17626.4, IEC 61000-4-4). It can attenuate transient pulse group signals by more than 20 dB. It can also be used to suppress interference above 1 MHz, with attenuation exceeding 10 dB (depending on the signal frequency).

The product has a snap-in design and can be directly attached to the cable, making it easy to use.

Parameters:

Parameter Value
Fast Pulse Suppression Ratio transient ≥ 20 dB
Through-Cable Diameter 23 mm
Dimensions (L × W × H) 520 mm × 130 mm × 120 mm
Operating temperature range 0°C ~ 65°C
Weight 2.6 kg
