Shielding elements on PCB plates
Shielding elements on PCB plates

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: FEUERHERDT

Shielding elements on PCB plates

EMI/RFI Screening Enclosures

Can with pins for PCB mounting
Shielding elements on PCBs
Tin plated steel (0.6 mm)
Pin size: 2.5 x1mm
L (length)
[mm]		 B (width)
[mm]		 H (height)
[mm]		 P/N
25 25 15 9501
30 25 18 9502
40 28 20 9503
40 32 18 9504
60 40 20 9505
70 50 25 9506


PCB mounting frame with fingered lid
Shielding components on PCBs
Tin plated steel (0.9mm)
Pin size: 2.3x1mm
L (length)
[mm]		 B (width)
[mm]		 H (height)
[mm]		 P/N
20 20 10 9510
30 30 15 9511
50 25 15 9512
50 50 15 9513
75 50 25 9514
75 75 25 9515
100 50 25 9516
125 75 25 9517


Standard can with fingered lid
Shielding components on PCBs
Tin plated steel (0.9mm)
L (length)
[mm]		 B (width)
[mm]		 H (height)
[mm]		 P/N
50 50 15 9520
75 50 25 9521
100 50 35 9522
160 100 50 9523

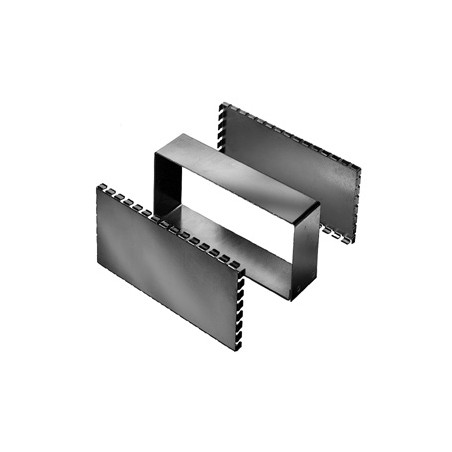

Open frame with top and bottom fingered lids
Shielding components on PCBs
Tin plated steel (0.9mm)
L (length)
[mm]		 B (width)
[mm]		 H (height)
[mm]		 P/N
50 50 15 9530
75 50 15 9531
100 50 25 9532
160 100 35 9533
220 100 50 9534


SHIELDING COMPONENTS ON PCBS

PCB shields with removable cover

Features:
- removable cover
- PCB mounting pins coated with a thin layer of tin
- optional locking pins
- optional inner walls
- standard dimensions given in the table, other dimensions available as per customer's specifications
- Other materials and finishes – copper, brass, tin-plated sheet, nickel, nickel-plated sheet

SPECIFICATION:

Material: Steel, BS EN 10130 DC01
Base thickness: 0.914 mm
Cover thickness: 0.559 mm
Surface resistance: 20x10-6Ohm
Conductivity: 5x104 S (mho)
Screen tolerance: +/- 0.25 mm
Pin tolerance: +/- 0.10 mm
Pin size: 1 x 2.25 mm



SHIELDING ELEMENTS ON PCB BOARDS


10.5 80x55x16
Model Dimensions according to pin outline
[mm]		 Overall external dimensions with cover Number of pins Pin spacing
[mm]
Length
(A)		 Width
(B)		 Height
(C)

CBPL1

 20 20 10 25x25x11 4 C/L

CBPL11

 25 25 10 30x30x11 4 C/L

CBPL5

 30 30 15 35x35x16 8 20

CBPL12

 40 40 15 45x45x16 8

CBPL2

 50 25 15 55x30x16 10 20

CBPL6

 50 50 15 55x55x16 8 20

CBPL9

 75 50 15 12 20

CBPL3

 75 50 25 80x55x26 12 20

CBPL7

 75 75 25 80x80x26 16 20

CBPL4

 100 50 25 105x55x26 12 20

CBPL8

 125 75 25 130x80x26 20 20

CBPL10

 160 100 35 165x105x36 24 20


PCB screens closed

SPECIFICATIONS:

Material: tin plated steel, BS EN 1202
Thickness: 0.54 mm
Surface resistance: 20x10-6Ohm
Conductivity: 5x104 S (mho)
Screen tolerance: +/- 0.25 mm
Pin tolerance: +/- 0.10 mm
Pin size: 1 x 2.25 mm


PCB screens closed



10.5 20 20
Model Dimensions according to pin outline
[mm]		 Overall external dimensions with cover Number of pins Pin spacing
[mm]
Length
(A)		 Width
(B)		 Height
(C)

CBMCPC1

 20 20 15 21x21x16 4 C/L

CBMCPC2

 25 25 15 26x26x16 8 10.5

CBMCPC3

 30 25 20 31x26x21 8 10.5

CBMCPC4

 30 30 15 31x31x16 8

CBMCPC5

 40 30 15 41x31x16 10 10.5

CBMCPC6

 40 35 20 41x36x21 12 10.5

CBMCPC7

 40 40 15 41x41x16 8 20

CBMCPC8

 50 50 15 51x51x16 8

CBMCPC9

 60 40 20 61x41x21 10 20

CBMCPC10

 70 50 25 71x51x26 10 20

CBMCPC11

 75 75 25 76x76x26 12 20

CBMCPC12

 100 50 25 101x51x26 12

NOTE:
We offer many other sizes of PCB screens, and we can also manufacture such screens according to customer specifications. Please contact DACPOL Sp. z o.o.

Less
