Manufacturer: EMC Prima

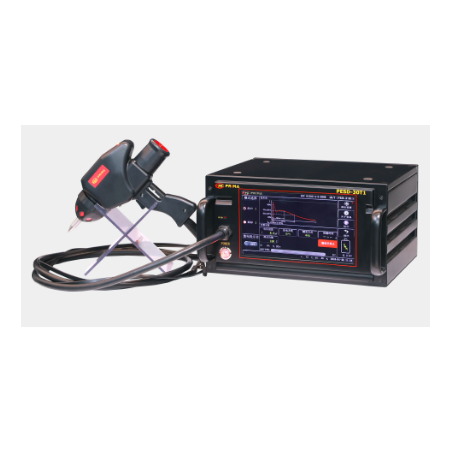

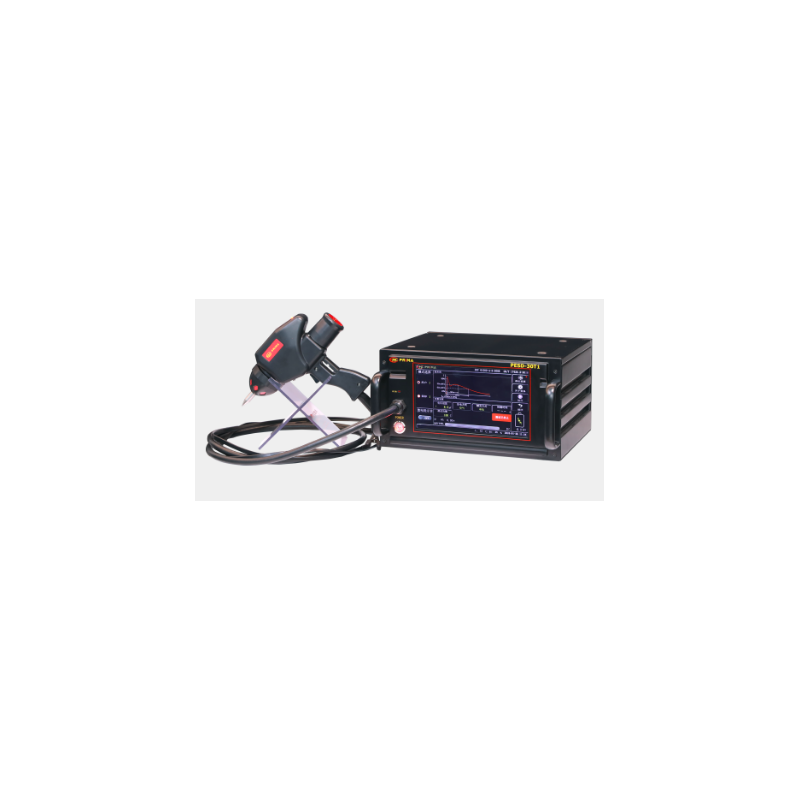

ESD simulator PESD-30T1

  • PESD-30T1

PESD-30T1 is specifically designed to meet electromagnetic compatibility requirements – electrostatic discharge (ESD) immunity testing – and is used to evaluate the performance of electrical and electronic devices subjected to electrostatic discharge interference (ESD) from operators and nearby objects.

Features:

  • Ergonomic design
  • Operated via a 10.1-inch color touchscreen
  • Freely switchable positive and negative polarity
  • Switchable between Chinese and English languages
  • Modes: Custom, Enhanced, and Standard
  • Superior technology, durable
  • Maximum test voltage: up to 30kV
  • Intelligent air discharge fault detection
  • RJ45 and RS232 interfaces, remote control (optional)
  • Replaceable discharge module
  • Supports continuous 20pps scanning discharge mode
  • Built-in real-time temperature, humidity, time, and high voltage display
  • Freely replaceable discharge electrode

Compliance with standards:

  • IEC61000-6-1
  • GR 1089
  • EN61326
  • GB/T17626.2 / EN / IEC61000-4-2
  • GB/T19951
  • ISO10605
  • IEC61340-3-1
  • ITU-T K.20
  • IEC61326

Parameters:

Parameter Value / Description
Contact discharge 200V ~ 30000V (±5%)
Air Discharge 200V ~ 30000V (±5%)
Voltage Range 0.20kV ~ 30.0kV ±5%
Voltage Surge 0.0kV ~ 10.0kV
Hold-up Time 5 seconds
Output Polarity +, -, +/- , -/+
T&H Built-in Thermometer and Humidity Meter
Discharge Electrode Pointed Head (for contact discharge) Rounded Head (for air discharge)
Discharge Mode Contact Discharge, Air Discharge
RC Module Discharge Capacitance: 150pF Discharge Resistance: 330Ω
Repetition Rate Single / 0.1 / 0.2 / 0.5 / 1 / 2 / 5 / 10 / 20 Hz
Trigger Mode Single, Manual, Automatic
Pulse Count 1c ~ 60000c
Pulse Rise Time 0.6 ~ 1.0 ns
