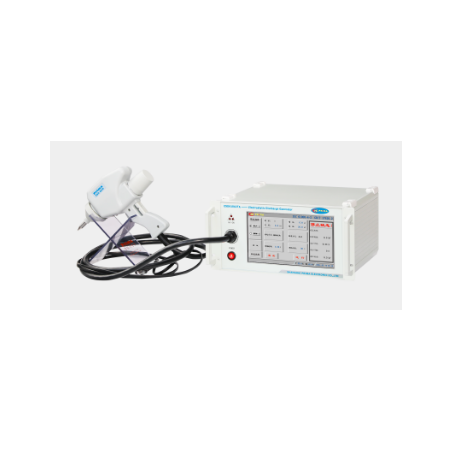

ESD61002TA ESD Simulator
ESD61002TA ESD Simulator

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: EMC Prima

ESD61002TA ESD Simulator

  • ESD61002TA

ESD61002TA has been specifically designed with electromagnetic compatibility requirements in mind – electrostatic discharge (ESD) immunity tests. Serves as a basis for assessing the performance of electrical and electronic devices subjected to electrostatic discharge interference directly from operators and nearby objects.

Features:

  • Ergonomic design
  • Operation via a 10.1-inch color touchscreen
  • Free switching of positive and negative polarity
  • Switchable between Chinese and English languages
  • Modes: custom, enhanced, and standard
  • Superior technology, durability
  • Maximum test voltage: up to 30kV
  • Intelligent air discharge fault detection
  • RJ45 and RS232 interfaces, remote control (optional)
  • Replaceable discharge module
  • Supports continuous 20pps scanning discharge mode.
  • Built-in real-time temperature, humidity, time, and high voltage display.
  • Freely replaceable discharge electrode.

Compliance with standards:

  • IEC61000-6-1
  • GR 1089
  • EN61326
  • GB/T17626.2 / EN / IEC61000-4-2
  • GB/T19951
  • ISO10605
  • IEC61340-3-1
  • ITU-T K.20
  • IEC61326

Parameters:

Parameter Value / Description
Contact discharge 200V ~ 20000V (±5%)
Air Discharge 200V ~ 20000V (±5%)
Voltage Range 0.20kV ~ 20.0kV ±5%
Voltage Surge 0.0kV ~ 10.0kV
Backup Time > 5 seconds
Output Polarity +, -, +/-, -/+
T&H Built-in Thermometer and Humidity Meter
Discharge Electrode Pointed Head (Contact Discharge) Rounded Head (Air Discharge)
Mode Discharge Contact discharge, air discharge
RC module Discharge capacitance: 150pF
