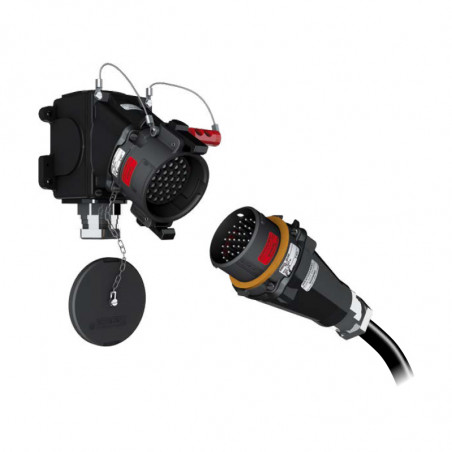

DXN37C - Explosion-proof multiplier plug-in devices up to 5A 37 contacts
DXN37C - Explosion-proof multiplier plug-in devices up to 5A 37 contacts

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: MARECHAL ELECTRIC

DXN37C - Explosion-proof multiplier plug-in devices up to 5A 37 contacts

DXN37C Explosion-Proof Multipole Plug-In Devices up to 5A 36-Point

  • Number of Contacts: 36 + E
  • Rugged IK09 Metal Housing
  • Voltage-Free Switching
  • Silver Contacts with Front Pressure
  • Zone 1 [&] 2, 21 [&] 22, Ignition Protection Type "e"
  • Certified according to ATEX 94/9/EC
  • IEC 60079-0/-7, IEC 61241-0/-1
  • IP 65

Accessories


Socket to be built Build plugin
A/V /Contacts /Input /Ø mm Item no. A/V /Contacts /Input /Ø mm Article no.
5A/220V /36 + E /M40 /16-27 36 M0361 5A / 220 V / 36 + E /M40 /16-27 36 M6361
5A/220V /36 + E /M32 /12-21 36 M0361 32M 5 A / 220 V / 36 + E /M32 /13-21 36 M6361 32M
Mount socket Built-in plugin
5A/220V /36 + E 36 M7361 5 A / 220 V /36 + E 36 M9361
Pass-through socket Pass-through plug
5A /220V /36 + E /M40 /16-27 36 M3361 5 A / 220 V /36 + E /M40 /16-27 36 M1361
5A/220V /36 + E /M32 /12-21 36 M3361 32M 5 A / 220 V /36 + E /M32 /12-21 36 M1361 32M
