Fast asymmetric thyristor modules
  • Fast asymmetric thyristor modules

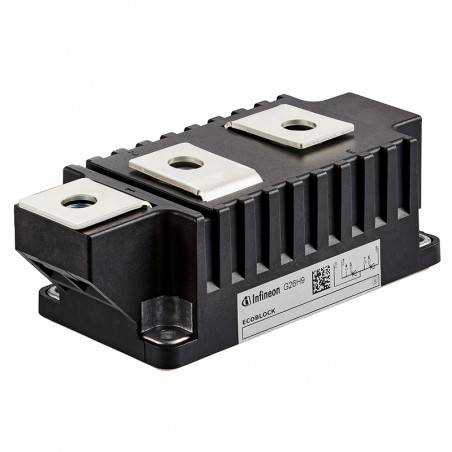

Photos are for informational purposes only. View product specification

Manufacturer: Infineon

Fast asymmetric thyristor modules

FAST ASYMMETRIC THYRISTOR MODULES

Table. Electrical Data


TypeITAVM/TC
[A/°C
VDRM
[V]vDRM [V]
ITSM [A]I2t
[A2 xl03]
tq
[µs]
dv/dt
[V/µs]
RthJC
[°C/W]
RthCK
[°C/W]
Casing
Base = 20 mm AD 50 F 50/85 1000 ... 1200* 1300 8,45 D <= 15 C = 500 0,45 0,16 TP20
C <= 12 F = 1000
B <= 10
AD 60 F 60/85 1000 ... 1200* 1450 10,5 D <= 15 C = 500 0,39 0,16 TP20
C <= 12 F = 1000
B <= 10
Base = 34 mm AD 96 S 95/85 800 ... 1300* 2350 27,6 D <= 15 C = 500 0,23 0,06 TP34
C <= 12
B <= 10 F = 1000
A <= 8
AD 116 S 115/85 800 ... 1200 2600 33,8 E <= 20 C = 500 0,23 0,06 TP34
D <= 15 F = 1000
Base = 50 mm AD 180 S 180/85 800 ... 1300* 4800 115 D <= 15 C = 500 0,13 0,04 TP50
C <= 12
B <= 10 F = 1000
A <= 8
AD 220 S 220/85 800 ... 1300* 5200 135 F <= 25 C = 500 0,13 0,04 TP50
E <=20 F = 1000
D <= 15

Caution:
*Highest voltage for special order
