Manufacturer: STEGO

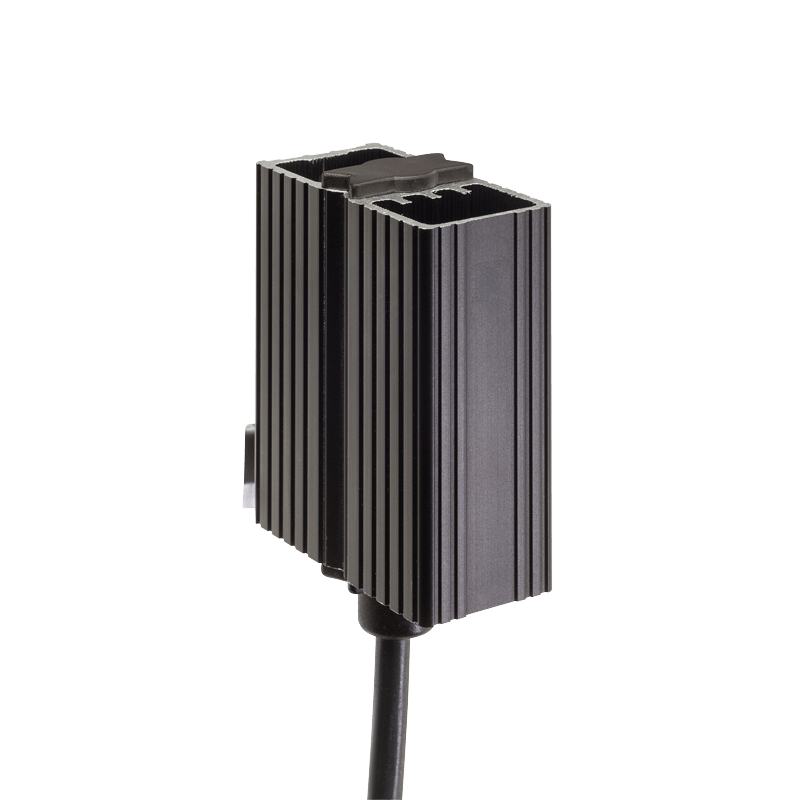

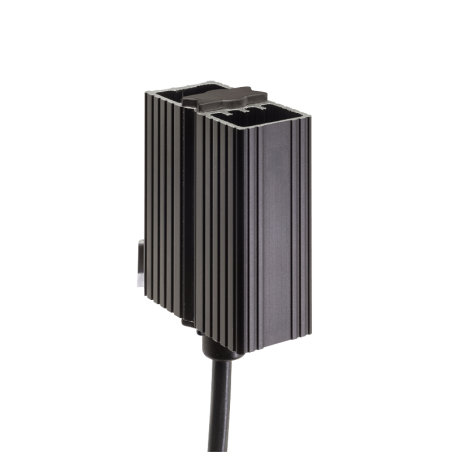

HGK 047 - Heater for electrical enclosures - 04701.9-00

  • 04701.9-00
  • Product Type Grzałka
  • Supply voltage 120 V - 240 V AC DC
  • Dimensions 185 x 70 x 60 mm
  • Protection rating IP20
  • Heating power 60 W
  • Electrical hookup 3 x złącza sprężynowe-naciskowe dla przewodów wielodrutowych 0,5 - 1,5 mm² (z izolowaną końcówką) i przewodów drutowych 0,5 - 2,5 mm²
  • Weight 400 g

This compact electrical enclosure heater with a PTC heating element prevents condensation from forming in enclosures. It is a convection heater for small electrical enclosures and housings. The heater body is made of anodized aluminum profile.

  • Wide voltage range for electrical connection
  • PTC heating element with dynamic response
  • This electrical enclosure heater is designed for continuous operation
  • Quick installation with clip-on mounting to a 35 mm DIN rail
Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

  • Product Type Grzałka
  • Supply voltage 120 V - 240 V AC DC
  • Dimensions 185 x 70 x 60 mm
  • Protection rating IP20
  • Heating power 60 W
  • Electrical hookup 3 x złącza sprężynowe-naciskowe dla przewodów wielodrutowych 0,5 - 1,5 mm² (z izolowaną końcówką) i przewodów drutowych 0,5 - 2,5 mm²
  • Weight 400 g

This compact electrical enclosure heater with a PTC heating element prevents condensation from forming in enclosures. It is a convection heater for small electrical enclosures and housings. The heater body is made of anodized aluminum profile.

  • Wide voltage range for electrical connection
  • PTC heating element with dynamic response
  • This electrical enclosure heater is designed for continuous operation
  • Quick installation with clip-on mounting to a 35 mm DIN rail
