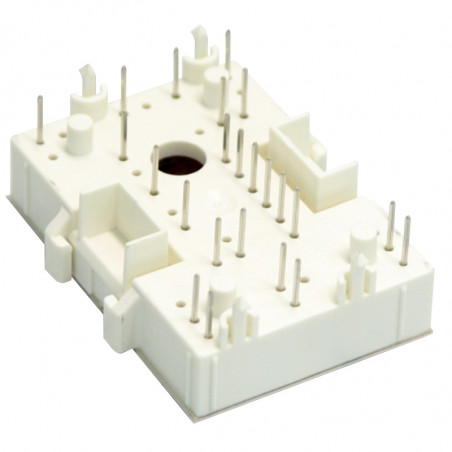

Photos are for informational purposes only. View product specification
Table. Electrical data
Scheme | Type | VCES [V] | Ic [A] | VCEsat Tvj=25°C [V] | Casing |
---|---|---|---|---|---|
![]() |
Low Loss 2. Generation | ||||
FB10R06KL4 | 600 | 10 | 1,95 | IS15 | |
FB10R06KL4G | 600 | 10 | 1,95 | IS17 | |
FP10R06KL4 | 600 | 10 | 1,95 | IS16 | |
FB15R06KL4 | 600 | 15 | 1,95 | IS17 | |
![]() |
FP15R06KL4 | 600 | 15 | 1,95 | IS16 |
FB20R06KL4 | 600 | 20 | 1,95 | IS17 | |
FP20R06KL4 | 600 | 20 | 1,95 | IS16 | |
![]() |
|||||
IGBT3 | |||||
FP10R12KE3 | 1200 | 10 | 1,9 | IS16 | |
FP15R12KE3 | 1200 | 15 | 1,7 | IS16 |
Are you interested in this product? Do you need additional information or individual pricing?
