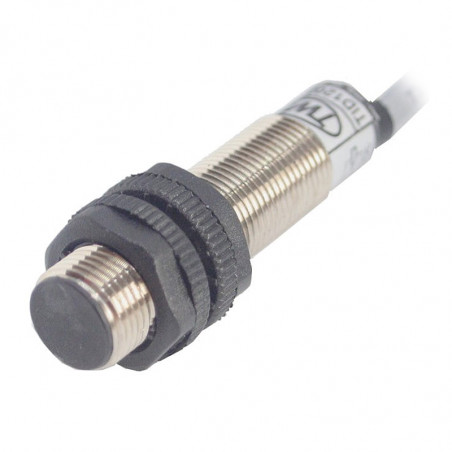

Inductive sensors TIDE DC 3 wires, enlarged zone of operation
  • Inductive sensors TIDE DC 3 wires, enlarged zone of operation

Photos are for informational purposes only. View product specification

Inductive sensors TIDE DC 3 wires, enlarged zone of operation

Properties
• metal casing
• enlarged zone of operation
• 10 - 30V DC (10 - 60V DC)*, 200mA (400mA)*
• 3 wire output
• current and overvoltage outputs protection
• LED signalisation
• Protection degree IP67
Specification
Supply voltage
10-30V DC (10-60V DC)*
Supply voltage ripple
≤ 3,5V
Load current
200mA (400mA)*
Power consumption without control
12mA
Residual voltage
0,8-1,8V DC
Residual current
< 10μA
Output resistance
6,8kΩ
Switching hysteresis
< 15%
Repeatability
< 10%Sn
Temperature coefficient
< 10%
Operation temperature
-25°C - +70°C
Protection degree
IP 67
Casing
nickled brass

Metal casing M12x1 M12x1 M18x1 M18x1 M30x1,5 M30x1,5
Assembly method Build in Not build in Build in Not build in Build in Not build in
Normal operation distance 4mm 7mm 8mm 12mm 15mm 22mm
Operation distance 0 - 3,2mm 0 - 5,6mm 0 - 6,4mm 0 - 9,6mm 0 - 12mm 0 - 17,6mm

Supply voltage 10 - 30 V DC* 10 - 30 V DC* 10 - 30 V DC* 10 - 30 V DC* 10 - 30 V DC* 10 - 30 V DC*
Load current 200mA* 200mA* 200mA* 200mA* 200mA* 200mA*
Switching frequency 1000Hz 500Hz 500Hz 300Hz 300Hz 200Hz
Connection PCW cable, 2mb 3 x 0,34mm2 PCW cable, 2mb 3 x 0,34mm2 PCW cable, 2mb 3 x 0,34mm2 PCW cable, 2mb 3 x 0,34mm2 PCW cable, 2mb 3 x 0,34mm2 PCW cable, 2mb 3 x 0,34mm2
Weight 0,05kg 0,05kg 0,08kg 0,08kg 0,12kg 0,12kg
Sensor marking


TIDE1204ZP TIDE1204RP TIDE1204ZN TIDE1204RN TIDE1207ZP TIDE1207RP TIDE1207ZN TIDE1207RN TIDE1808ZP
TIDE1808RP
TIDE1808ZN
TIDE1808RN
TIDE1812ZP
TIDE1812RP
TIDE1812ZN
TIDE1812RN
TIDE3015ZP
TIDE3015RP
TIDE3015ZN
TIDE3015RN
TIDE3022ZP TIDE3022RP TIDE3022ZN TIDE3022RN

Metal casing M12x1 M12x1 M18x1 M18x1 M30x1,5 M30x1,5
Assembly method Build in Not build in Build in Not build in Build in Not build in
Normal operation distance 4mm 7mm 8mm 12mm 15mm 22mm
Operation distance 0 - 3,2mm 0 - 5,6mm 0 - 6,4mm 0 - 9,6mm 0 - 12mm 0 - 17,6mm

Supply voltage 10 - 30 V DC* 10 - 30 V DC* 10 - 30 V DC* 10 - 30 V DC* 10 - 30 V DC* 10 - 30 V DC*
Load current 200mA* 200mA* 200mA* 200mA* 200mA* 200mA*
Switching frequency 1000Hz 500Hz 500Hz 300Hz 300Hz 200Hz
Connection connector M12 connector M12 connector M12 connector M12 connector M12 connector M12
Weight 0,05kg 0,05kg 0,08kg 0,08kg 0,12kg 0,12kg
Sensor marking


TIDE1204ZPK TIDE1204RPK TIDE1204ZNK TIDE1204RNK TIDE1207ZPK TIDE1207RPK TIDE1207ZNK TIDE1207RNK TIDE1808ZPK TIDE1808RPK TIDE1808ZNK TIDE1808RNK TIDE1812ZPK TIDE1812RPK TIDE1812ZNK TIDE1812RNK TIDE3015ZPK TIDE3015RPK TIDE3015ZNK TIDE3015RNK TIDE3022ZPK TIDE3022RPK TIDE3022ZNK TIDE3022RNK
