Manufacturer: Arcotronics

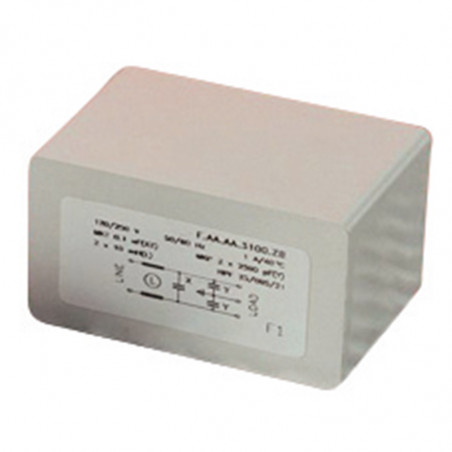

Interference LC-RFI filters for PCB - F.AM.AV

Electrical data

Nominal voltage (UR): 250V 50/60HZ
Nominal current (IN): at ambient temperature 40°C
Leakage current (IL): maximum value at 220V, 50Hz
Voltage test (2s): line - ground 3000 VDC and/or 1800 VAC
line - line 1700 VDC
Climatic category: HPF (25/85/21)
Temperature range: -25°C - 85°C

Type IR
[A]		 L1
[mH]		 L2
[mH]		 Cx1
[pF]		 Cx2
[pF]		 Cy1
[pF]		 Cy2
[pF]		 IL
[mA]		 R
[MΩ]		 Scheme
F.AM.AV.3600.ZC010 16 2x 1     0,6 2x2500   2x0,23 1 A
F.AM.AV.3600.ZI.010 16 2x 1     0,6 2x6800   2x0,62 1 A
F.AM.AV.3940.ZA 3,3 2x 13   0,47 0,47 2x6800   2x0,62 0,33 B
F.AM.AV.3940.ZB.001 3,3 2x 13 2x1 0,47 0,47 2x6800 2x1000 2x0,72 0,68 C

Scheme A
FILTRY PRZECIWZAKŁÓCENIOWE LC-RFI DO DRUKU – SERIA F.AM.AV scheamt A		 Scheme B
FILTRY PRZECIWZAKŁÓCENIOWE LC-RFI DO DRUKU – SERIA F.AM.AV scheamt B
Scheme C
FILTRY PRZECIWZAKŁÓCENIOWE LC-RFI DO DRUKU – SERIA F.AM.AV scheamt C

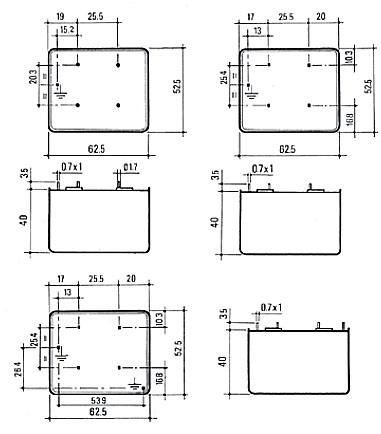

Dimensions [mm] and terminals

FILTRY PRZECIWZAKŁÓCENIOWE LC-RFI DO DRUKU – SERIA F.AM.AV wymiary i doprowadzenia

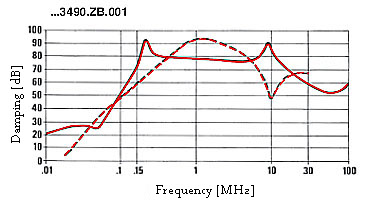

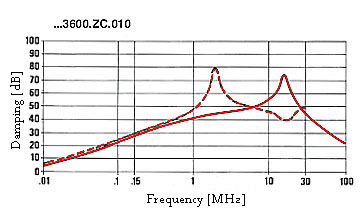

Characteristics – attenuation

................... - symmetrical (line-line)
___________ - asymmetrical (line-ground)
